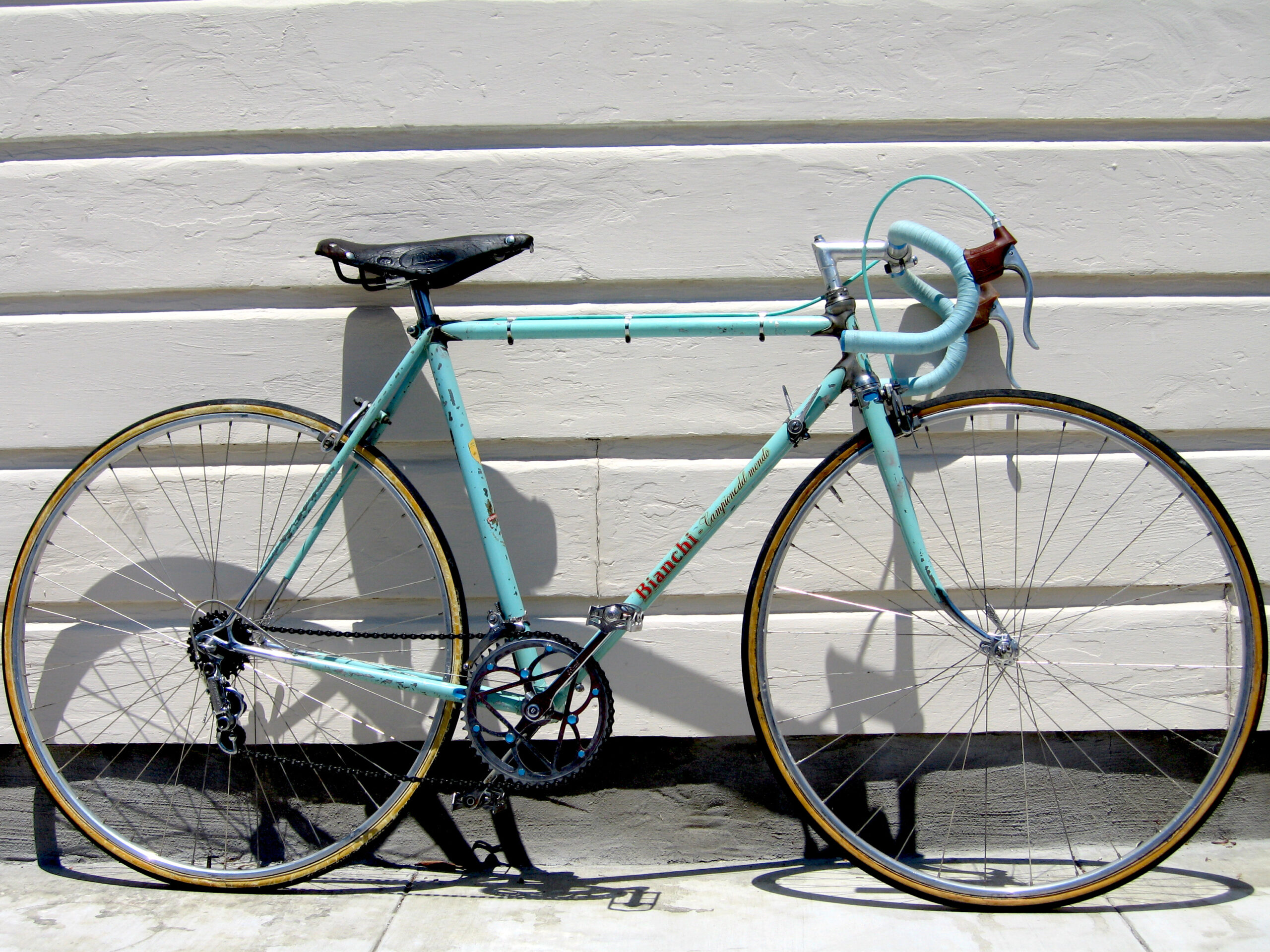

Tech Specs: 1955 Bianchi Campione del Mondo

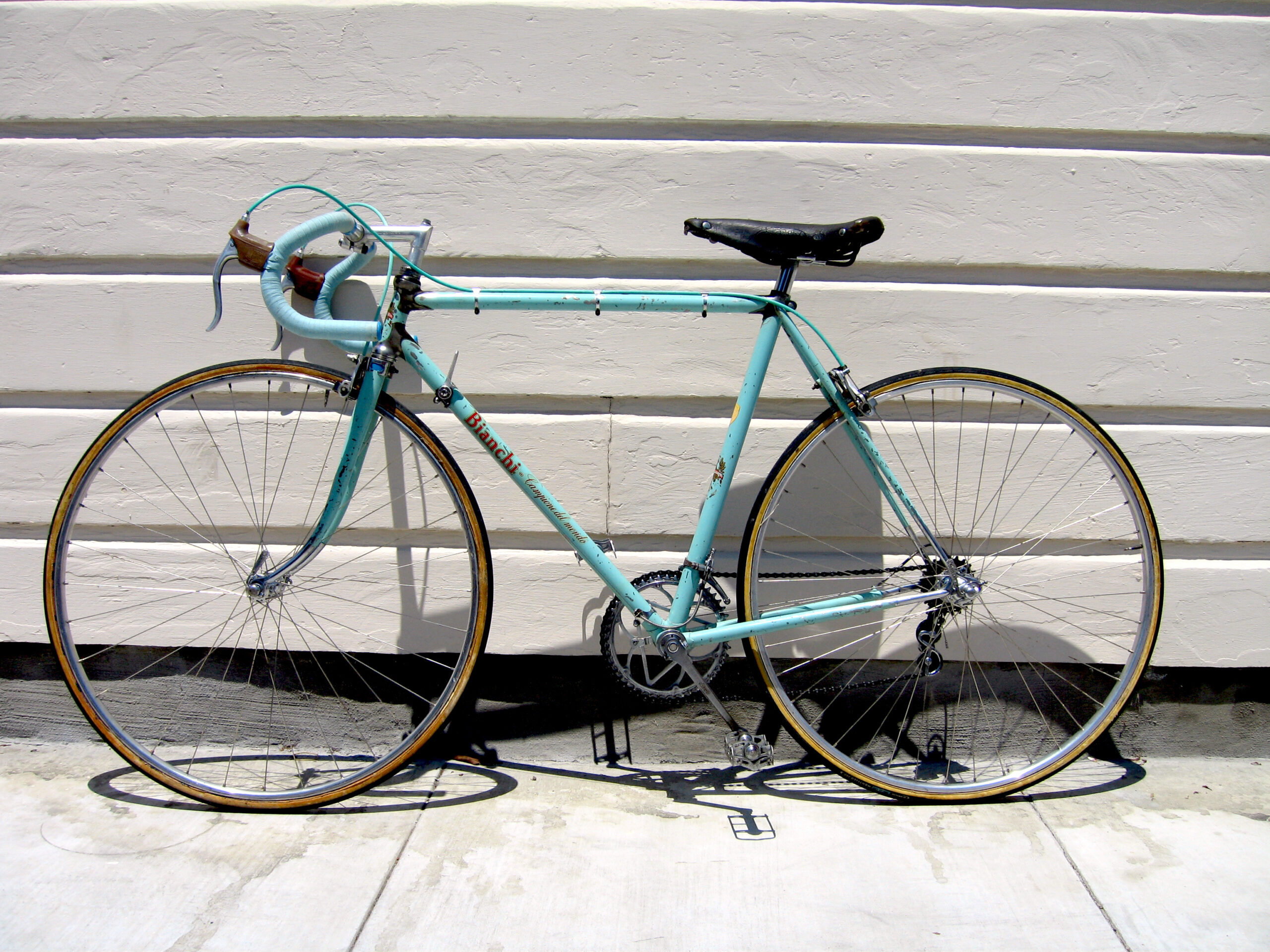

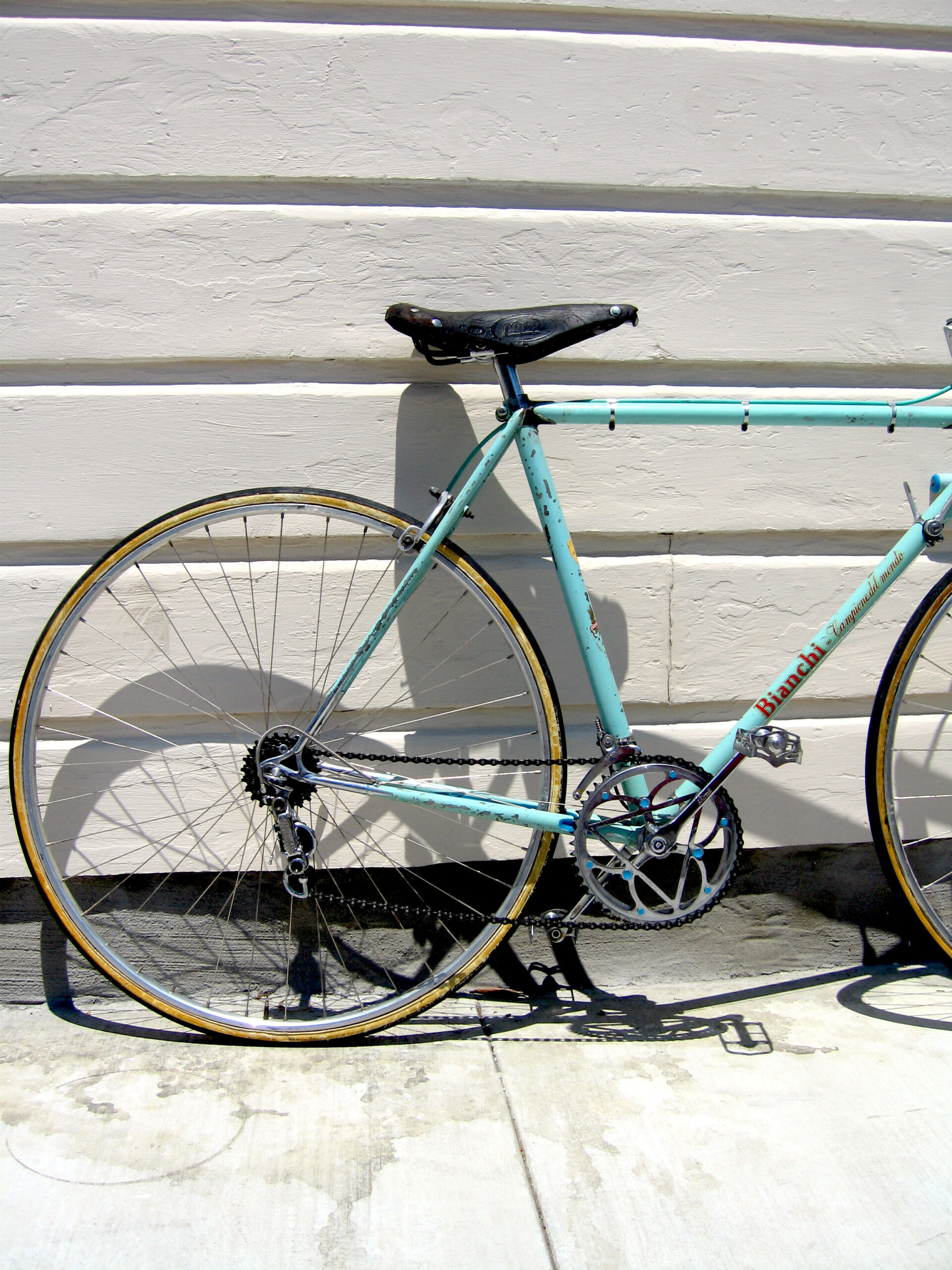

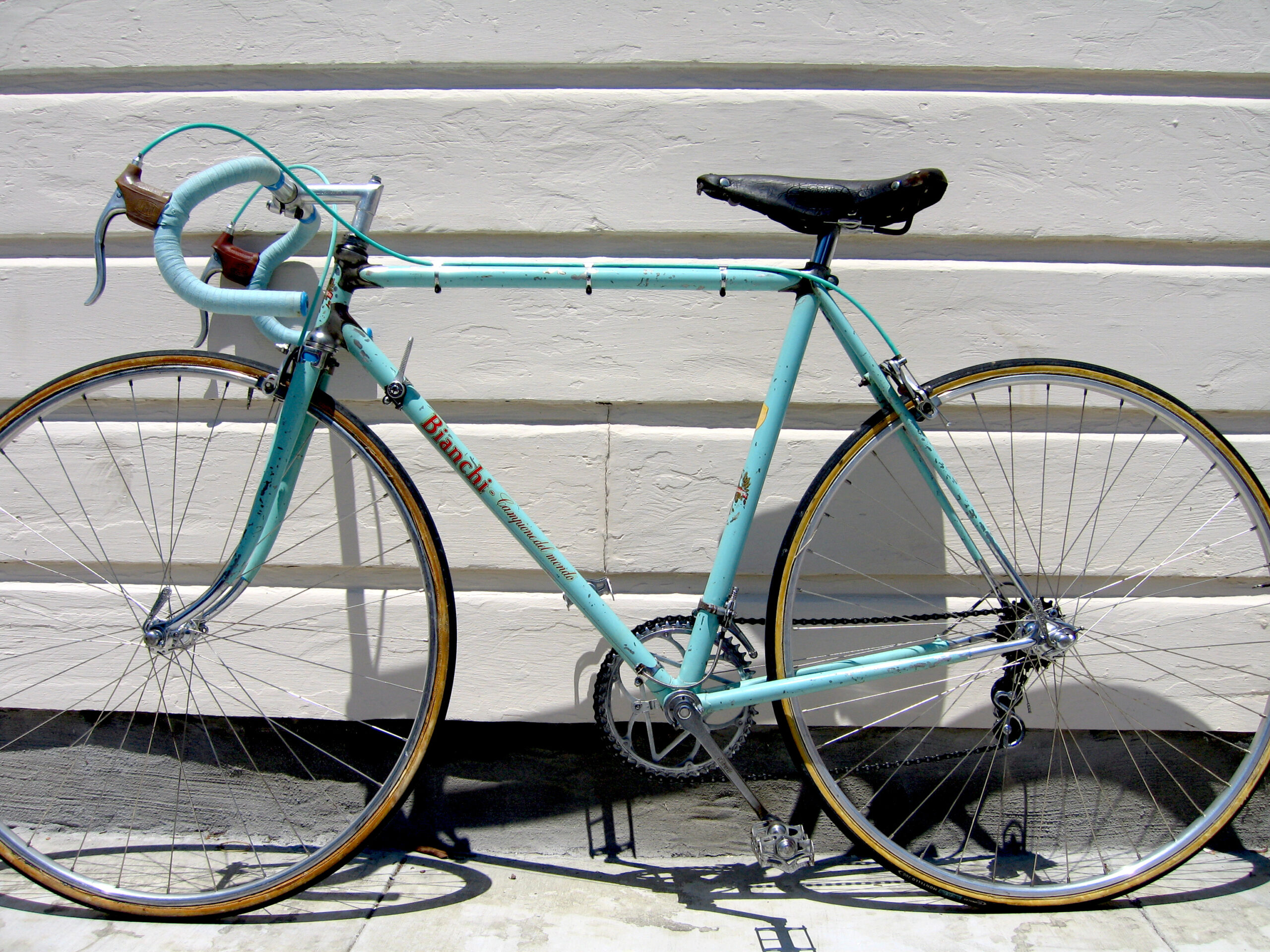

1955 Bianchi Campione del Mondo 024
  • Bianchi Frameset
  • Campagnolo Drivetrain
  • Ambrosio & Coppi Cockpit
  • Campagnolo & Fiamme Wheelset

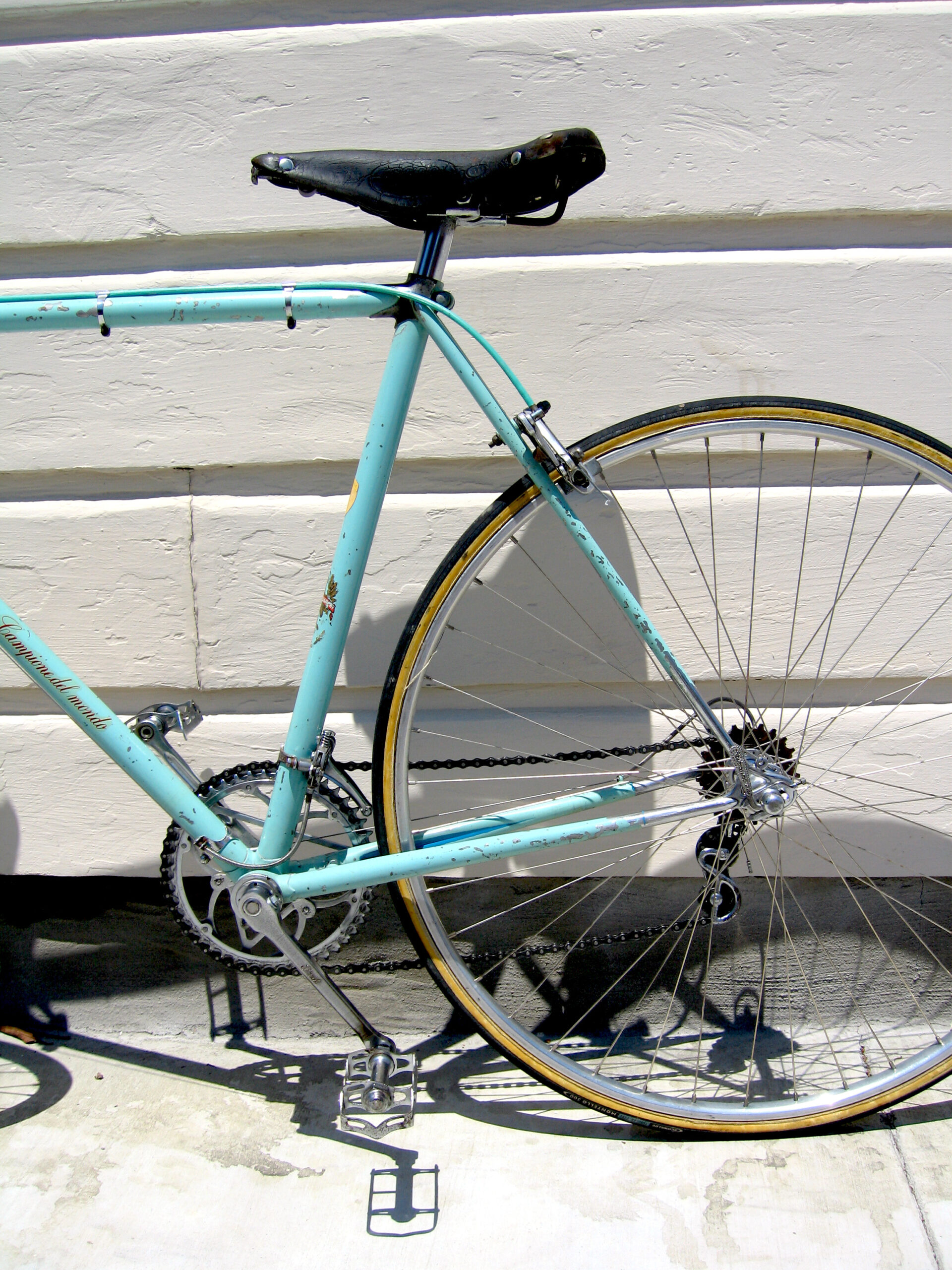

Frame:Bianchi, traditional Italian lugs, fender mounts, steel

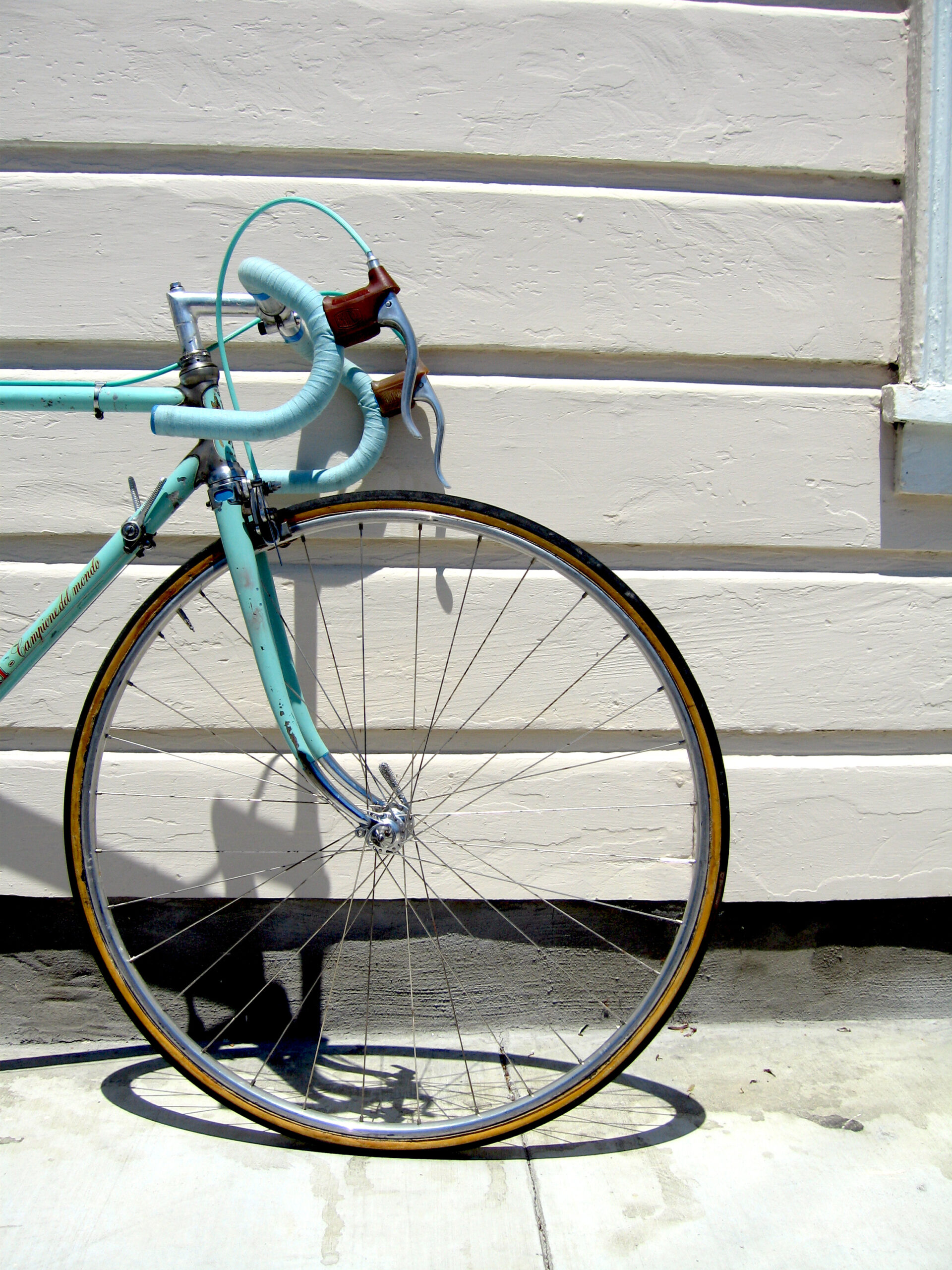

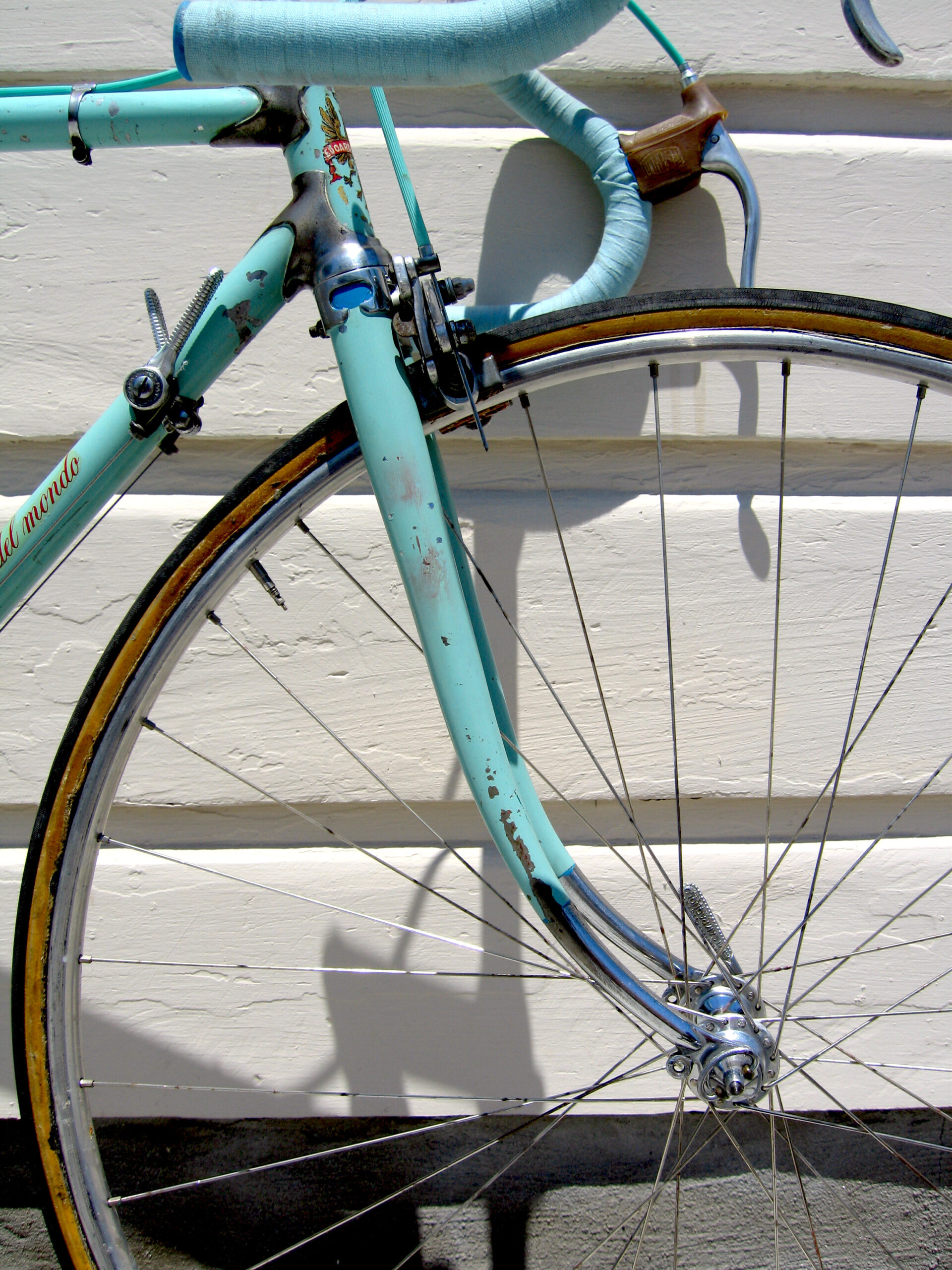

Fork:Bianchi, square crown, fender mounts, steel
Dropouts:Campagnolo, steel

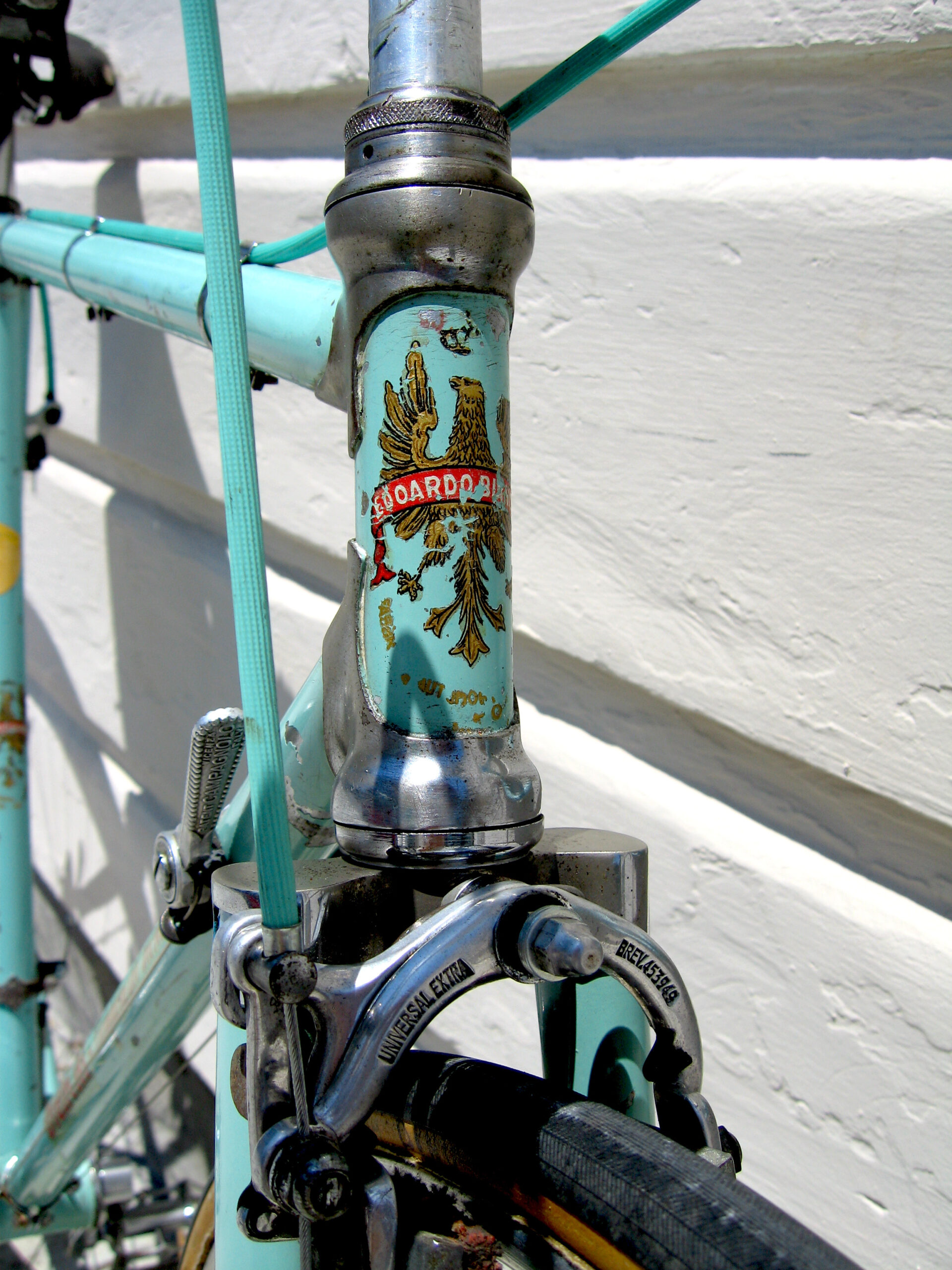

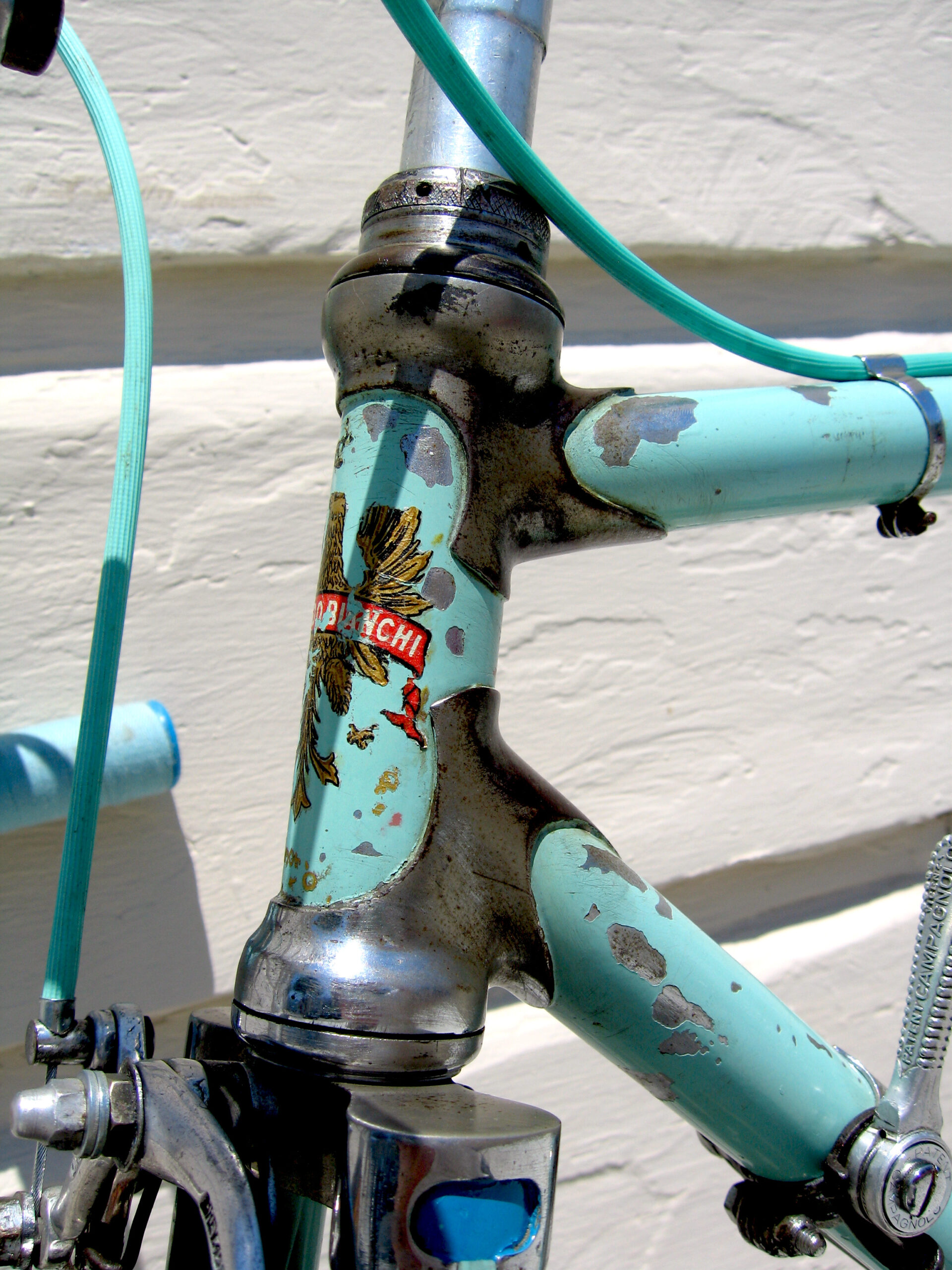

Headset:Bianchi, floating internal, steel

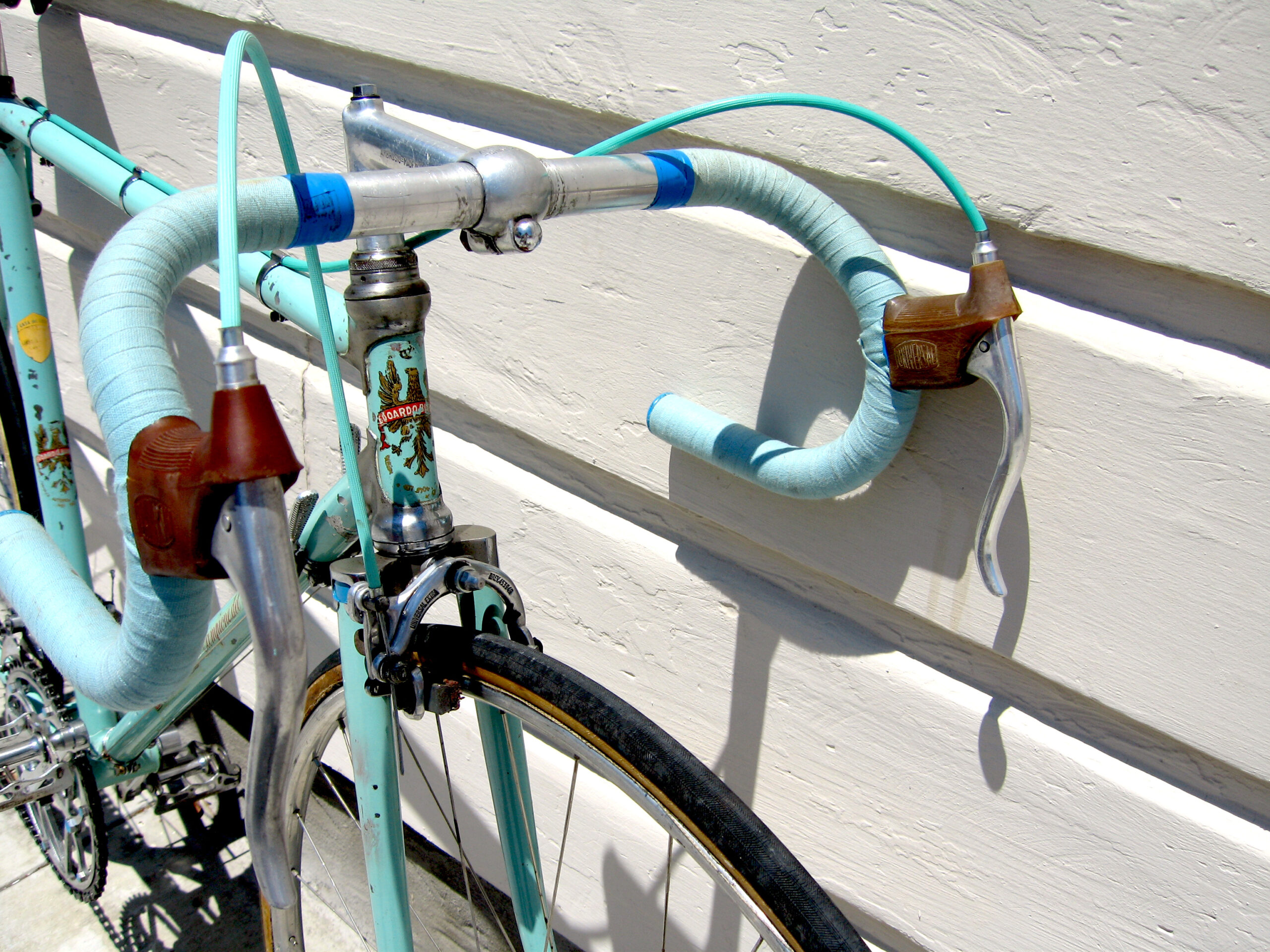

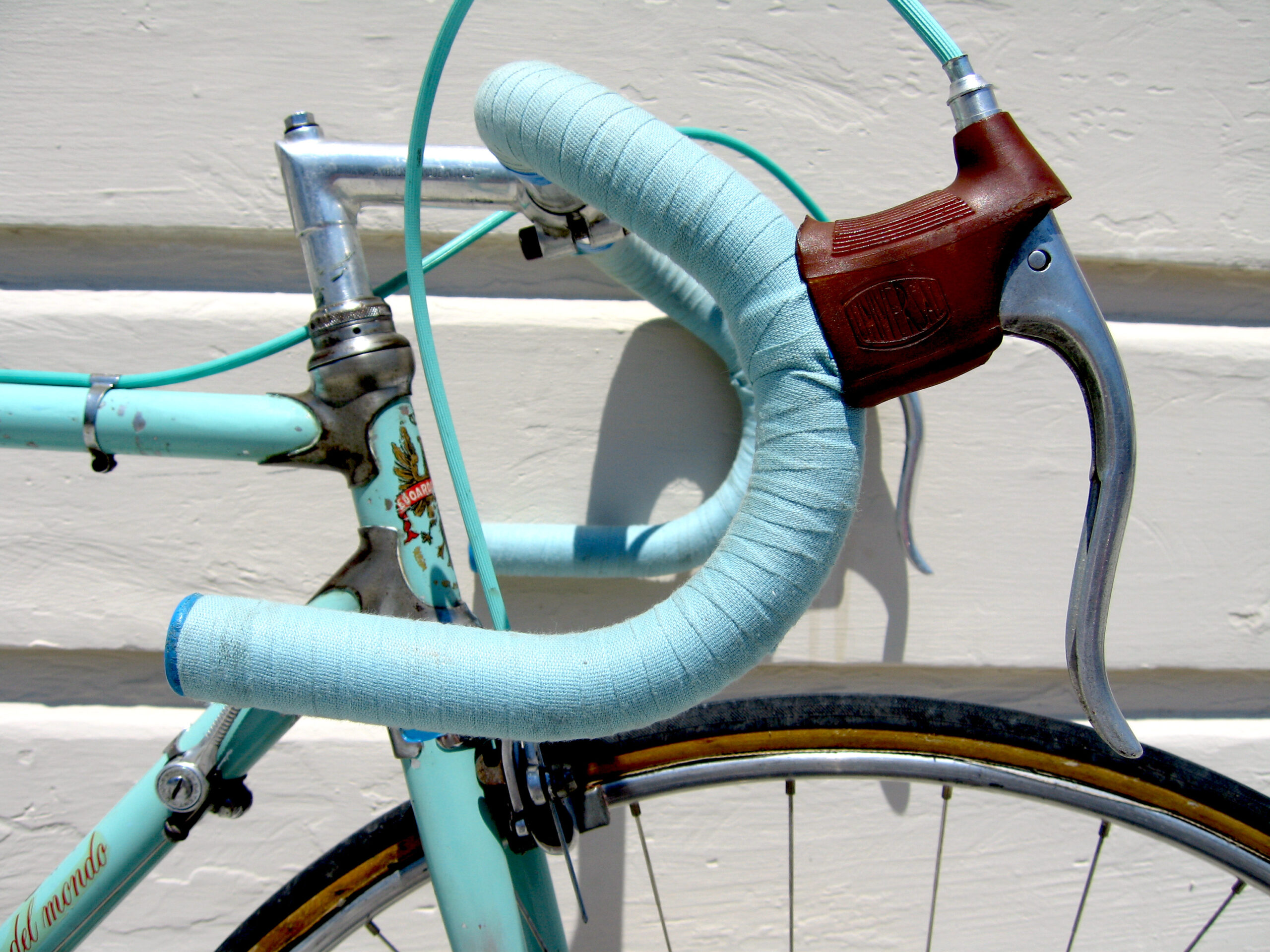

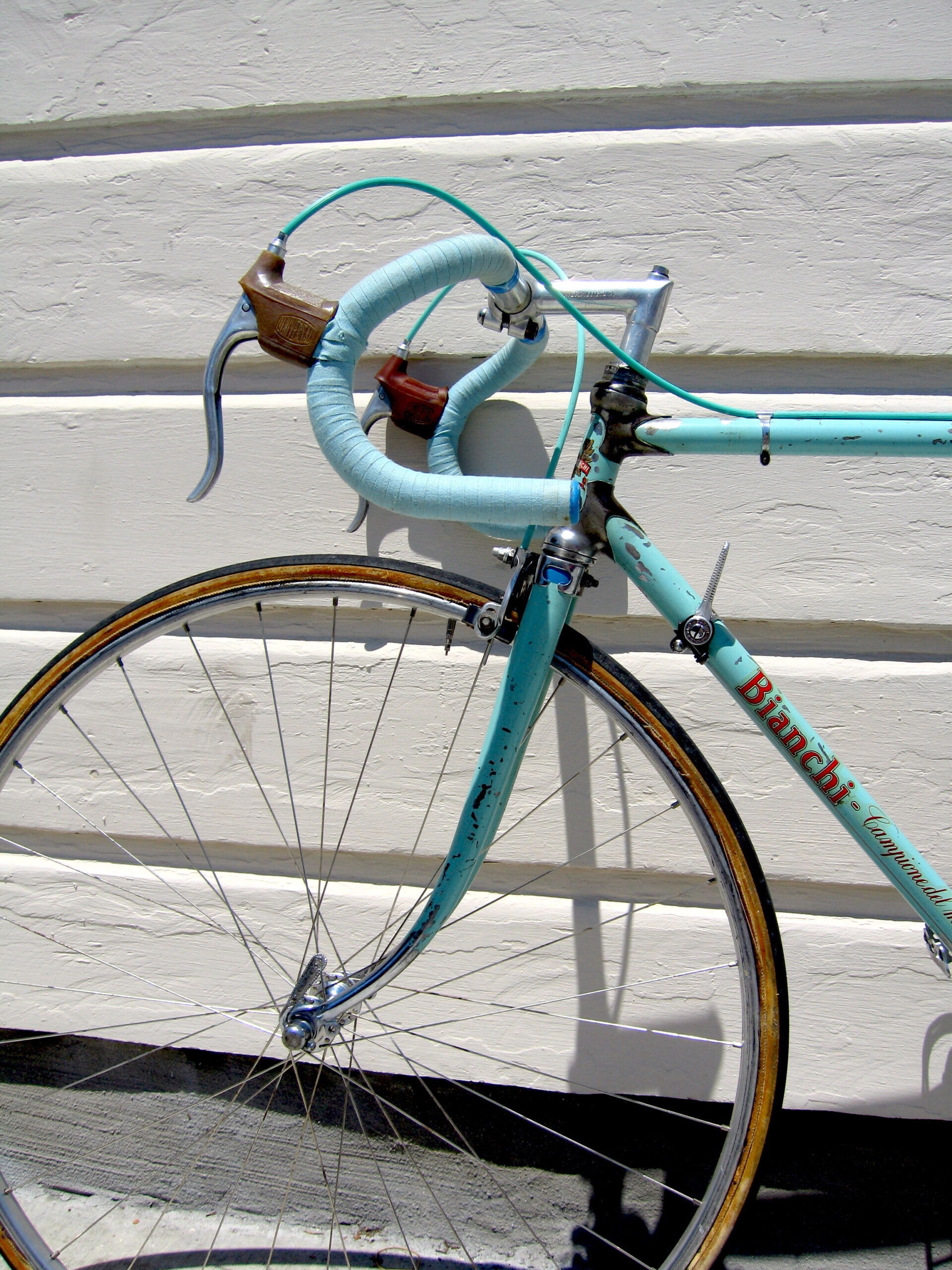

Handlebar:Ambrosio, criterium drop, aluminum

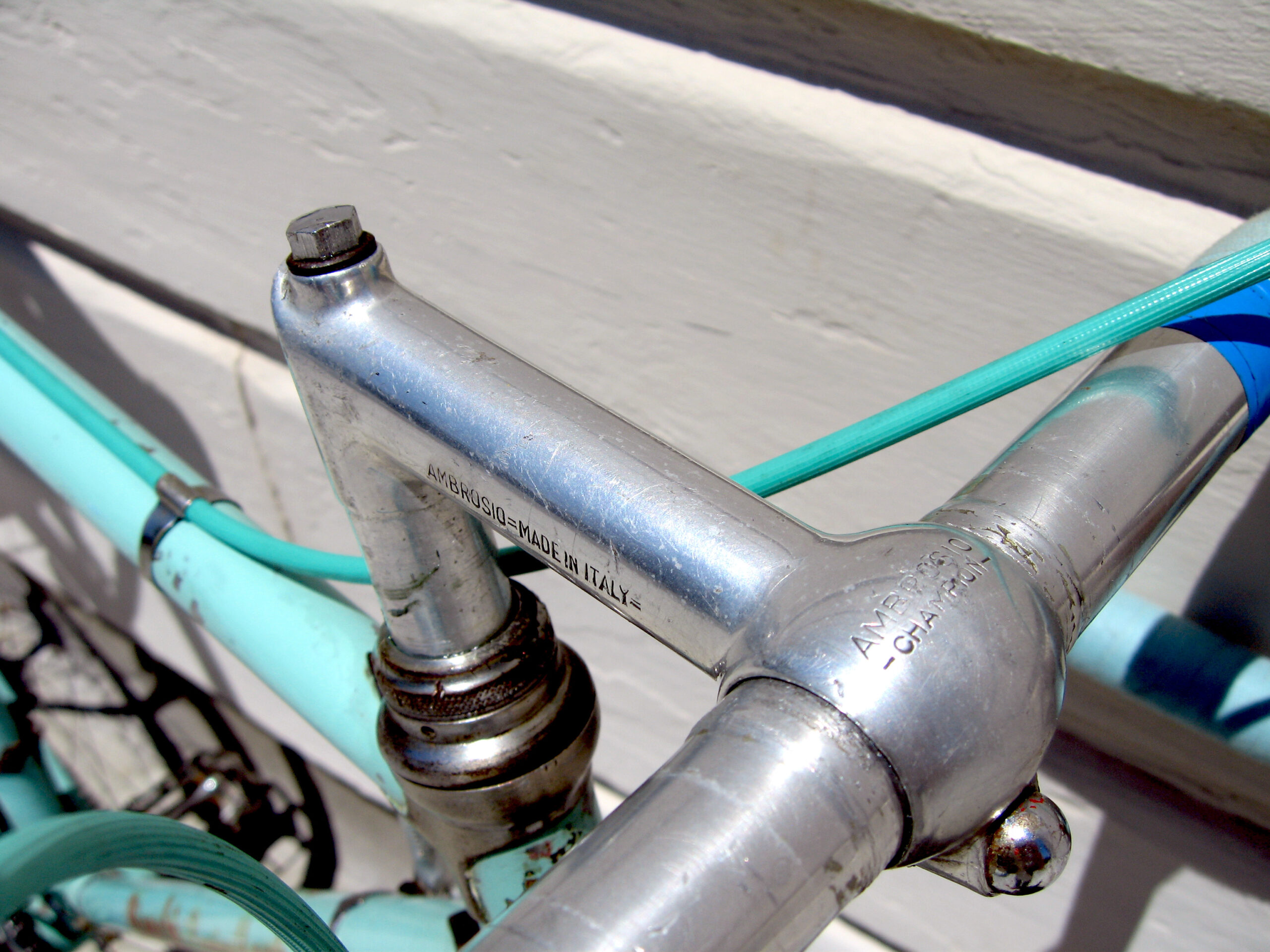

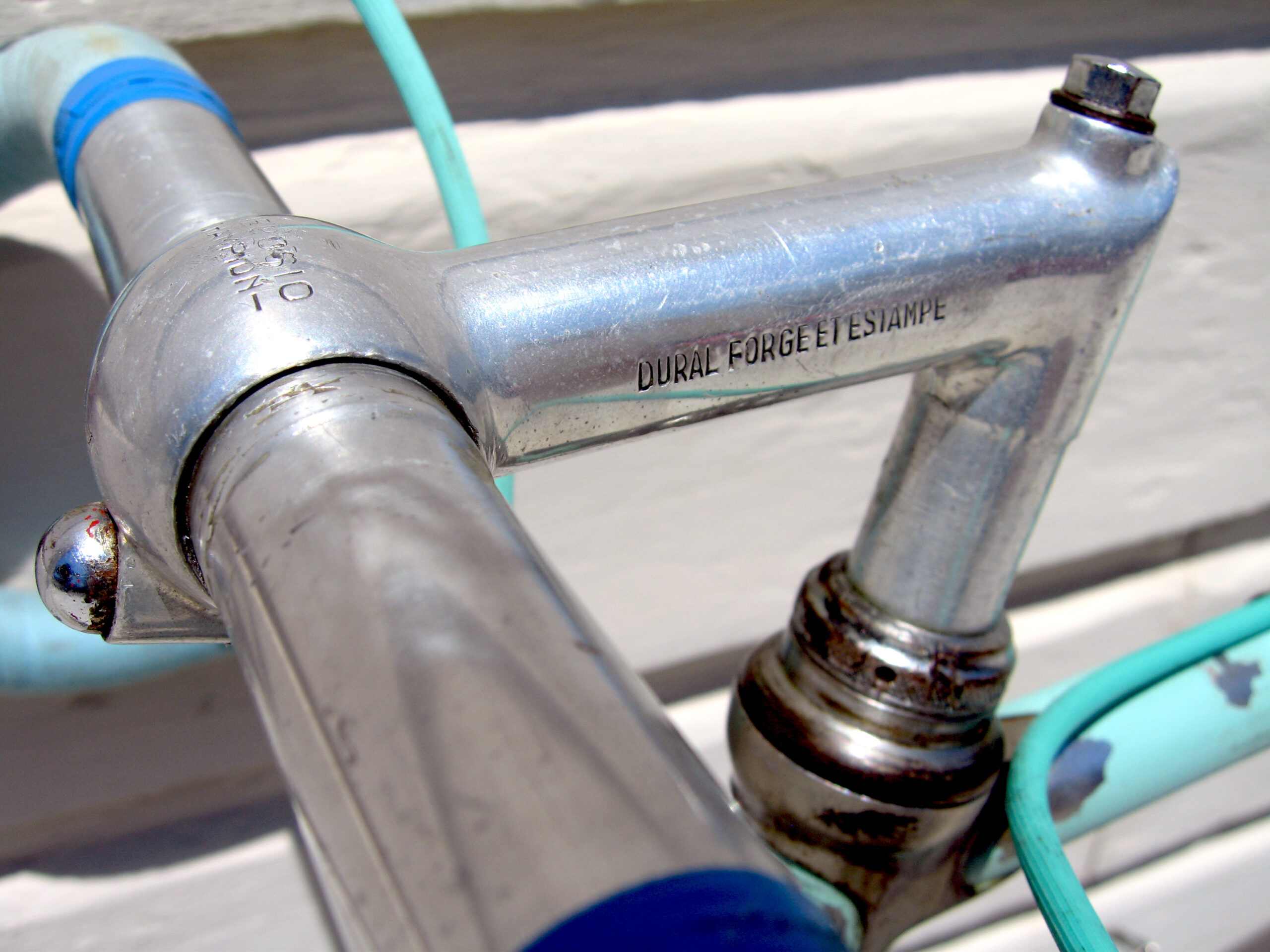

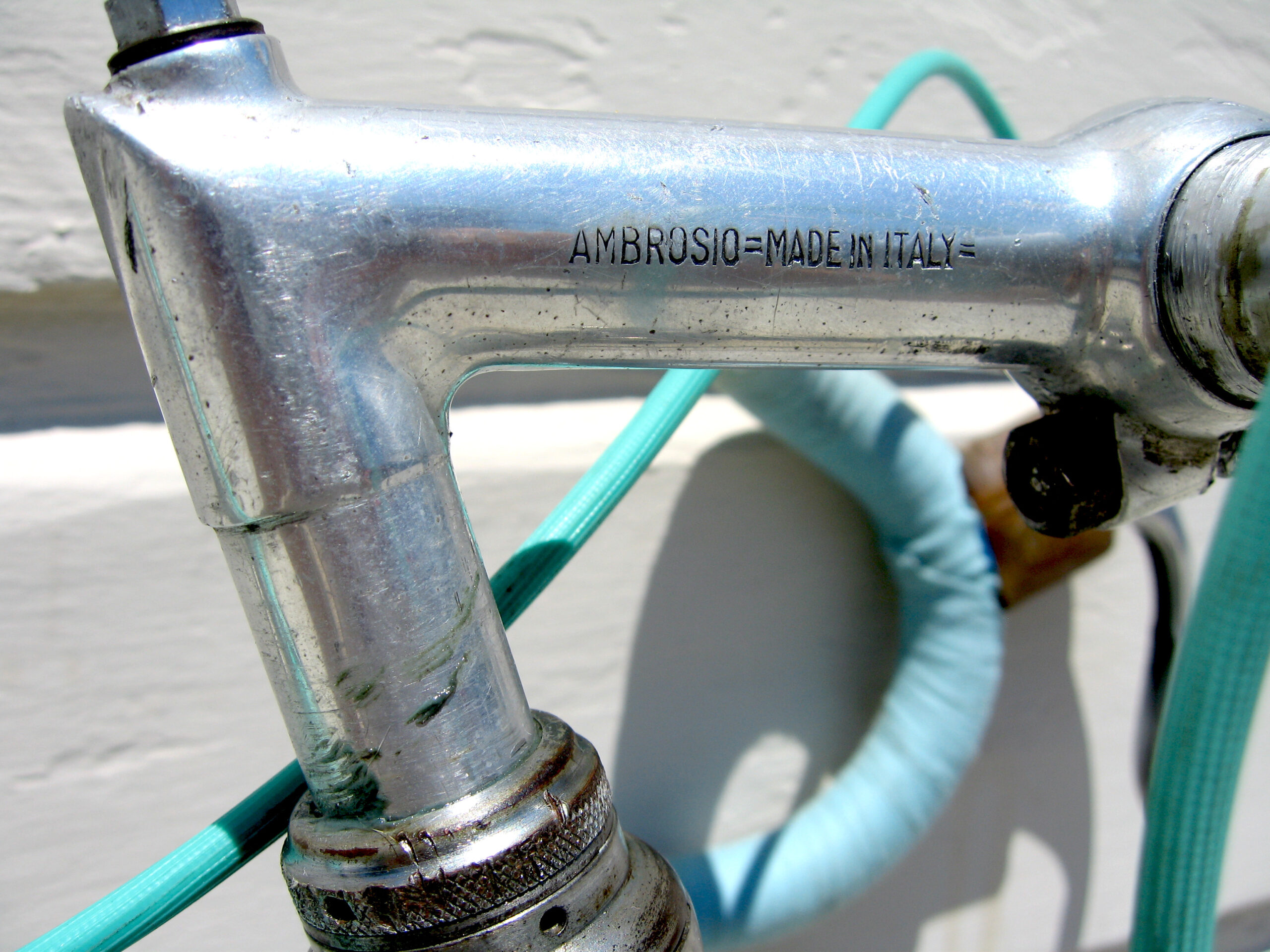

Stem:Ambrosio Champion, single domed bolt, aluminum
Brake Levers:Universal, partially open back, aluminum

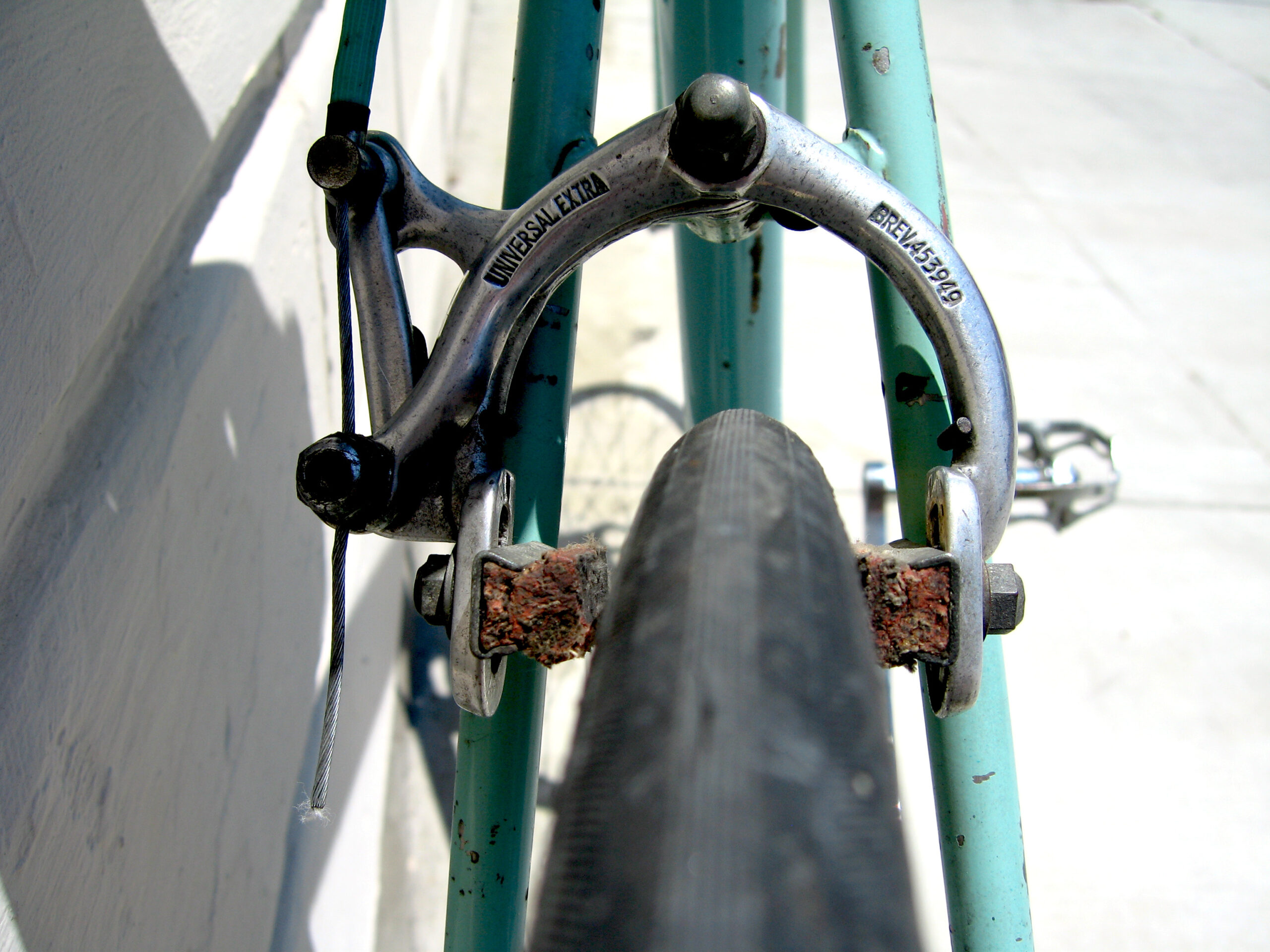

Brake Calipers:Universal Tenax, Brev. 45, aluminum

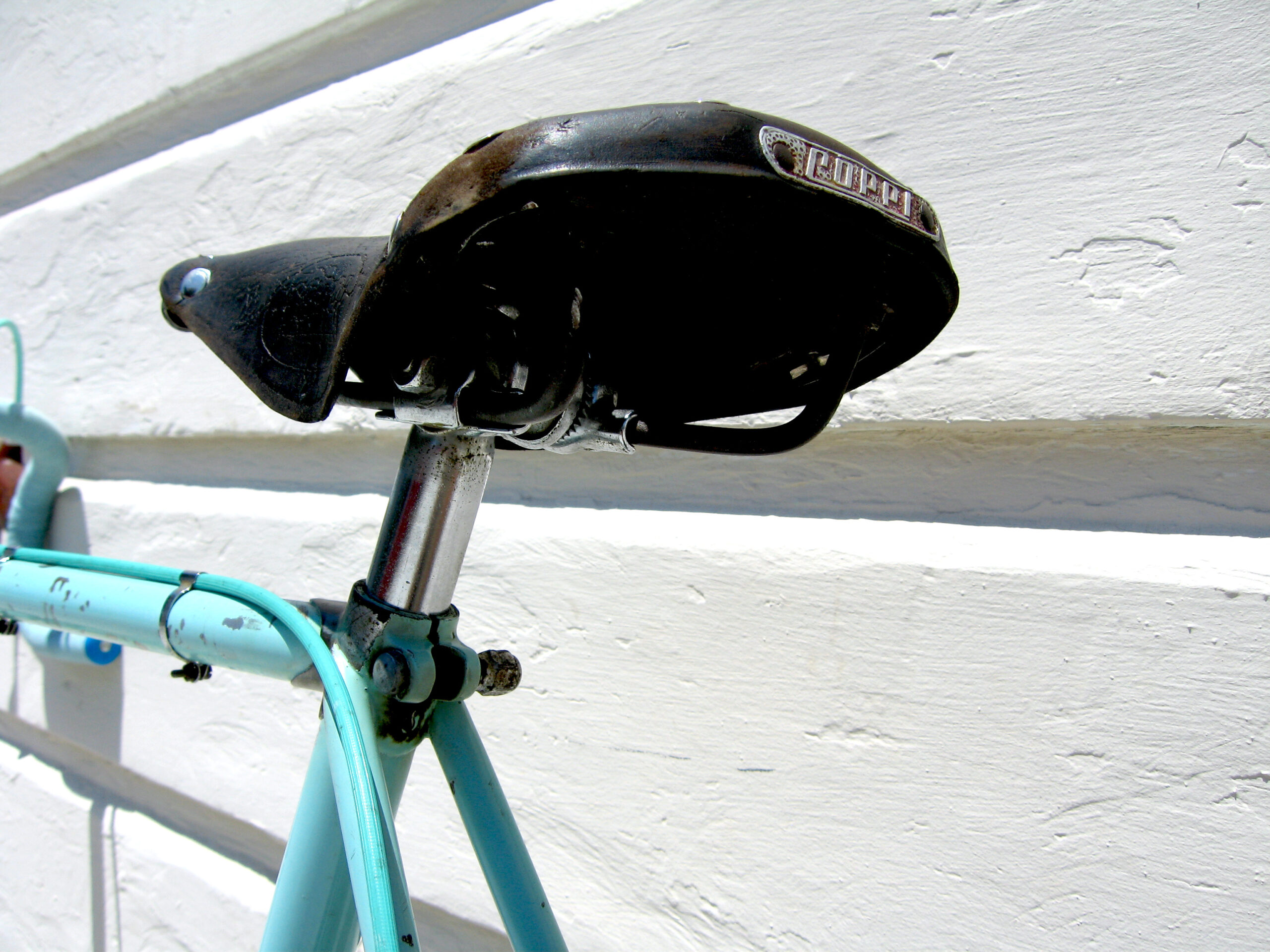

Saddle:Coppi, chrome rivets, steel rails
Post:Italian, dome top, steel

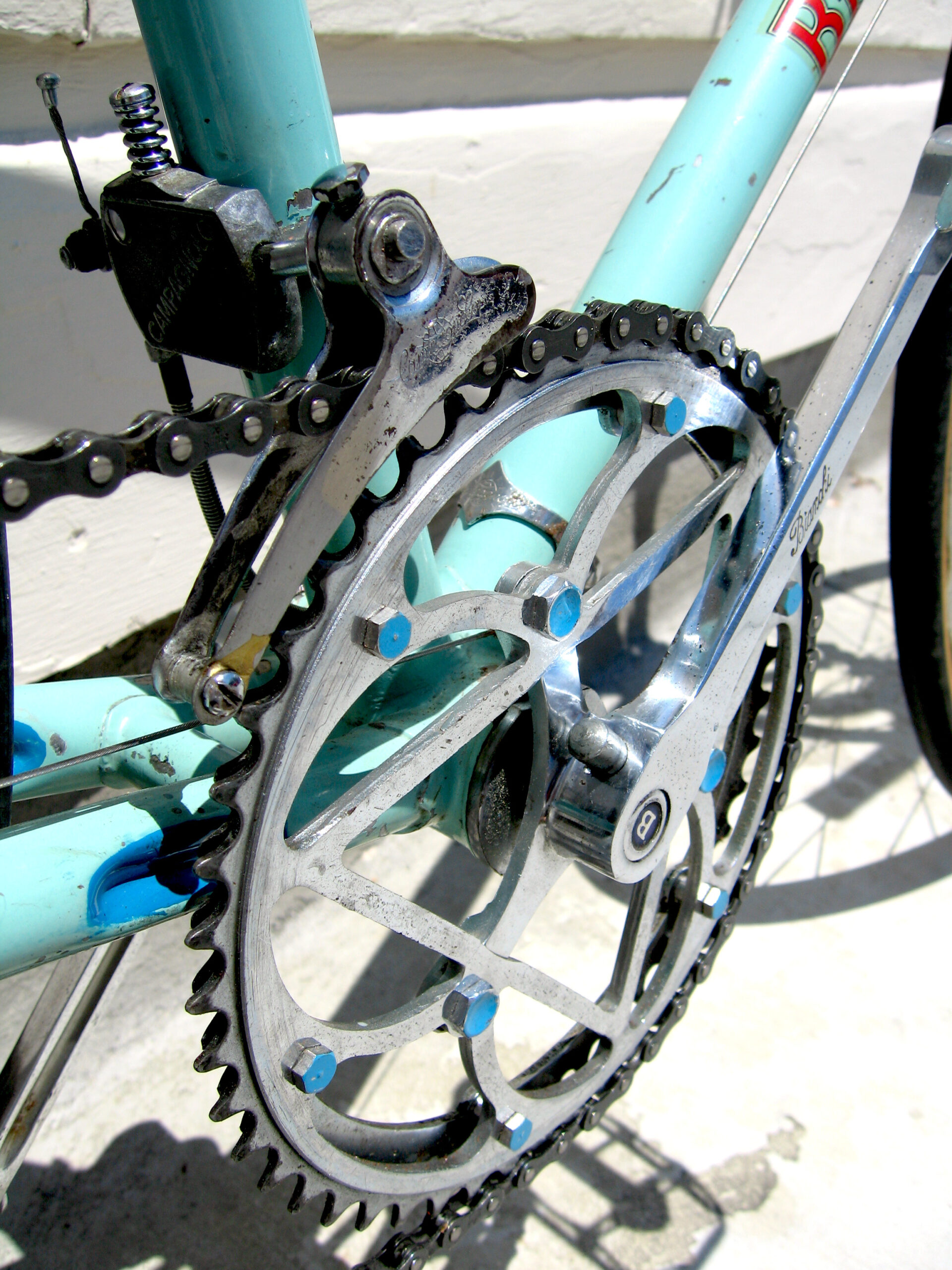

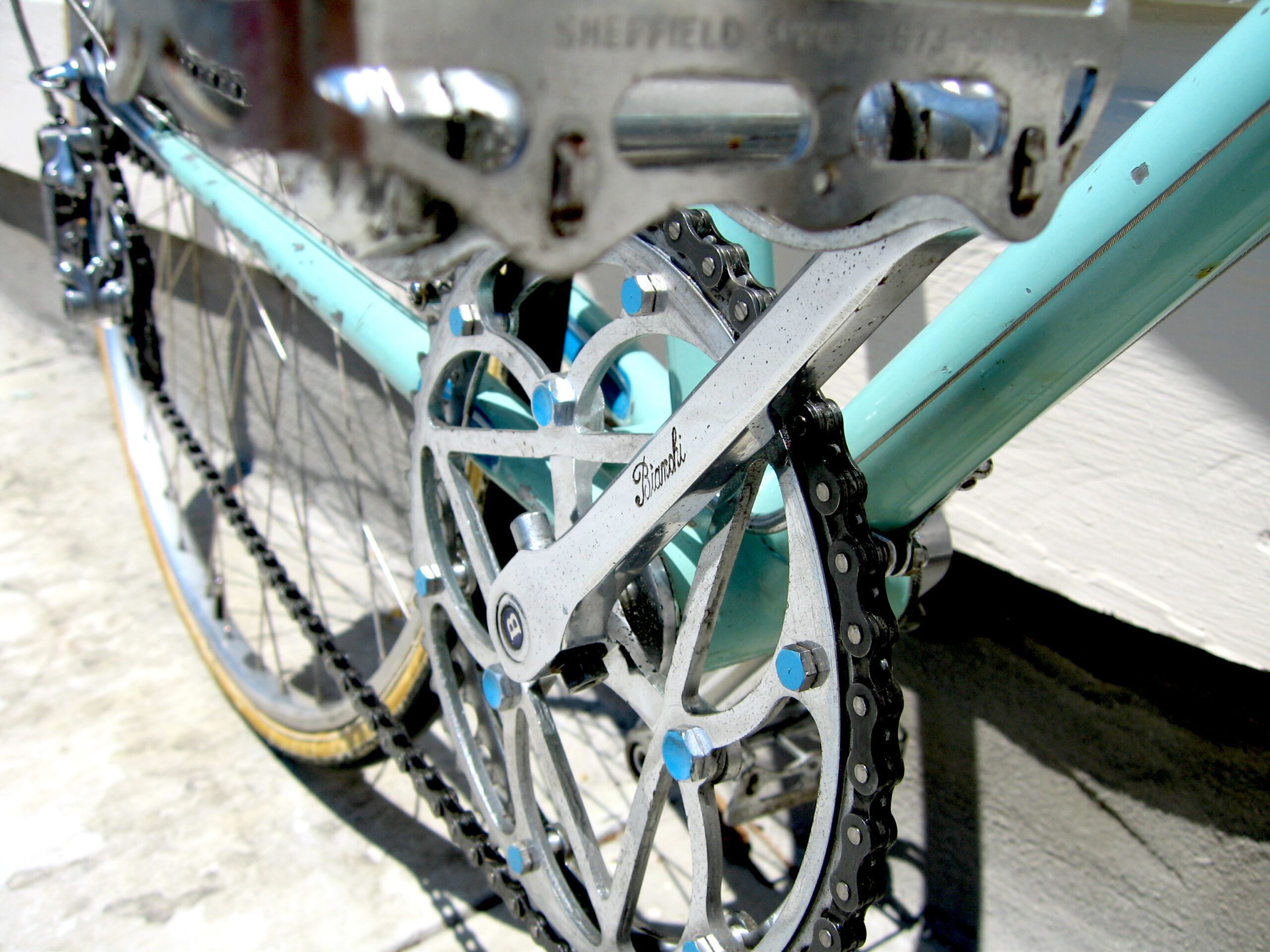

Crank:Campagnolo for Bianchi, cottered, three bolt spider, steel
Chainrings:Campagnolo for Bianchi, 49-46 teeth, steel
Freewheel:Everest, 5 speed, 15-17-19-21-23 teeth, steel
Bottom Bracket:Campagnolo, cottered, steel

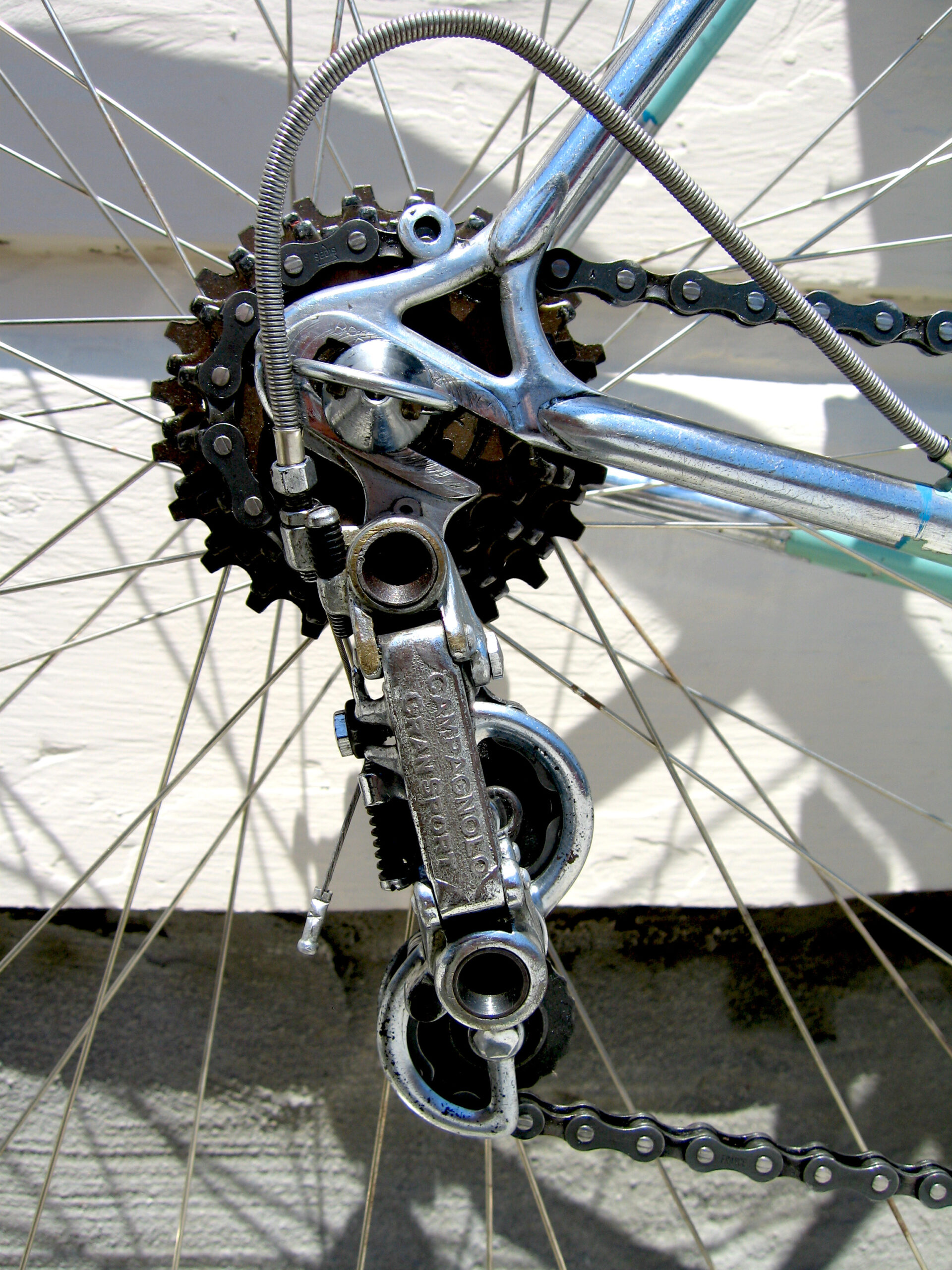

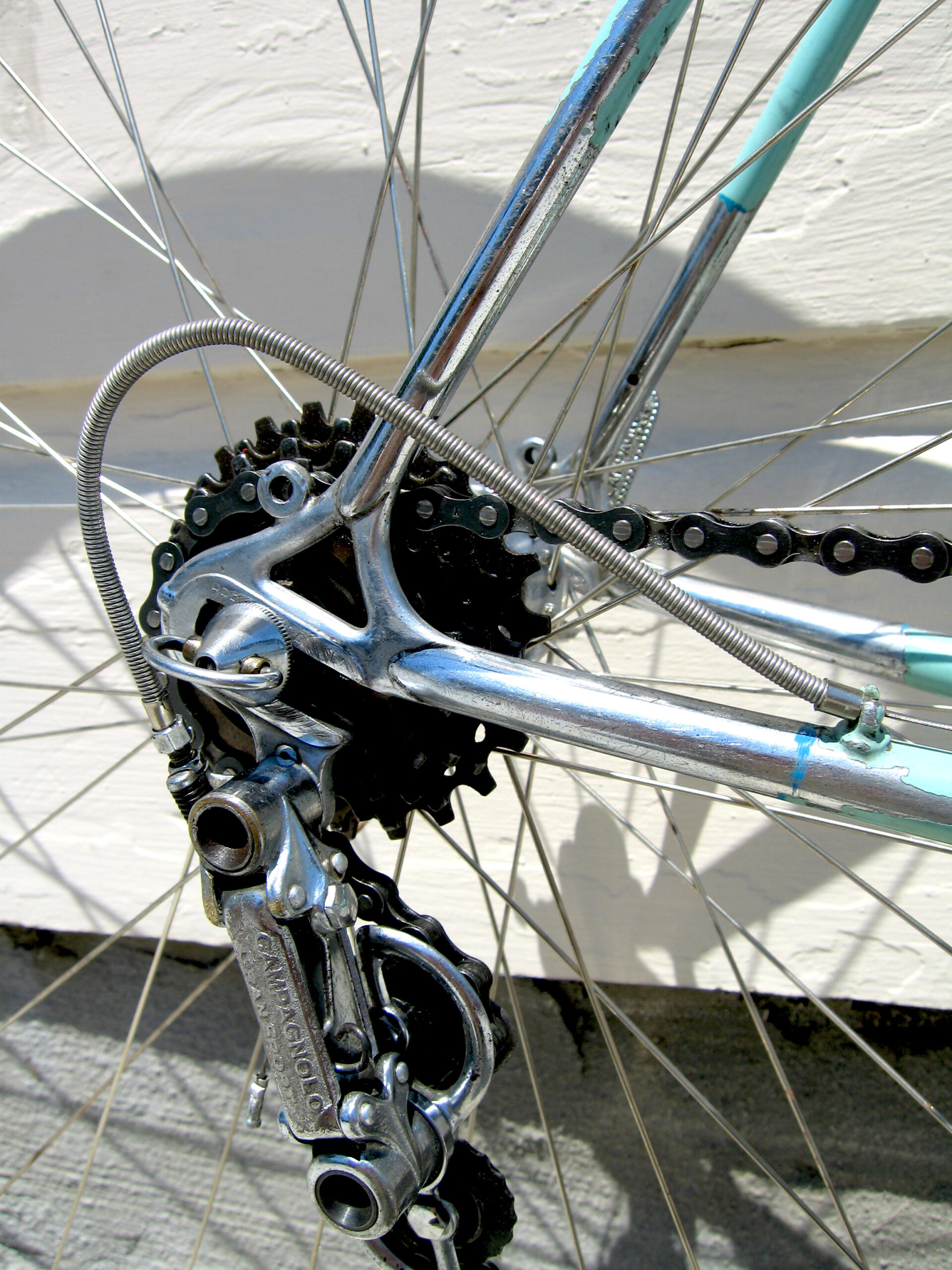

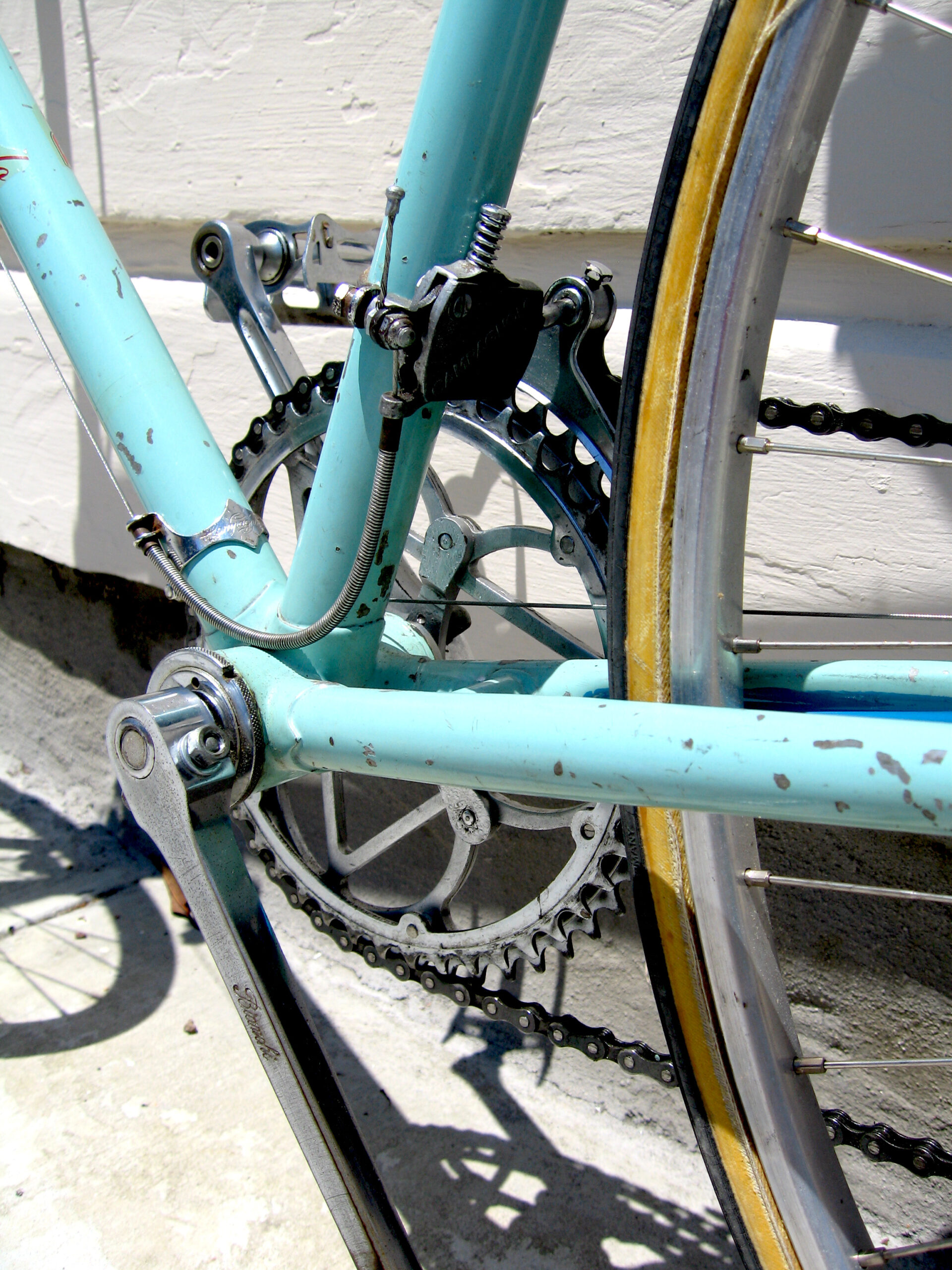

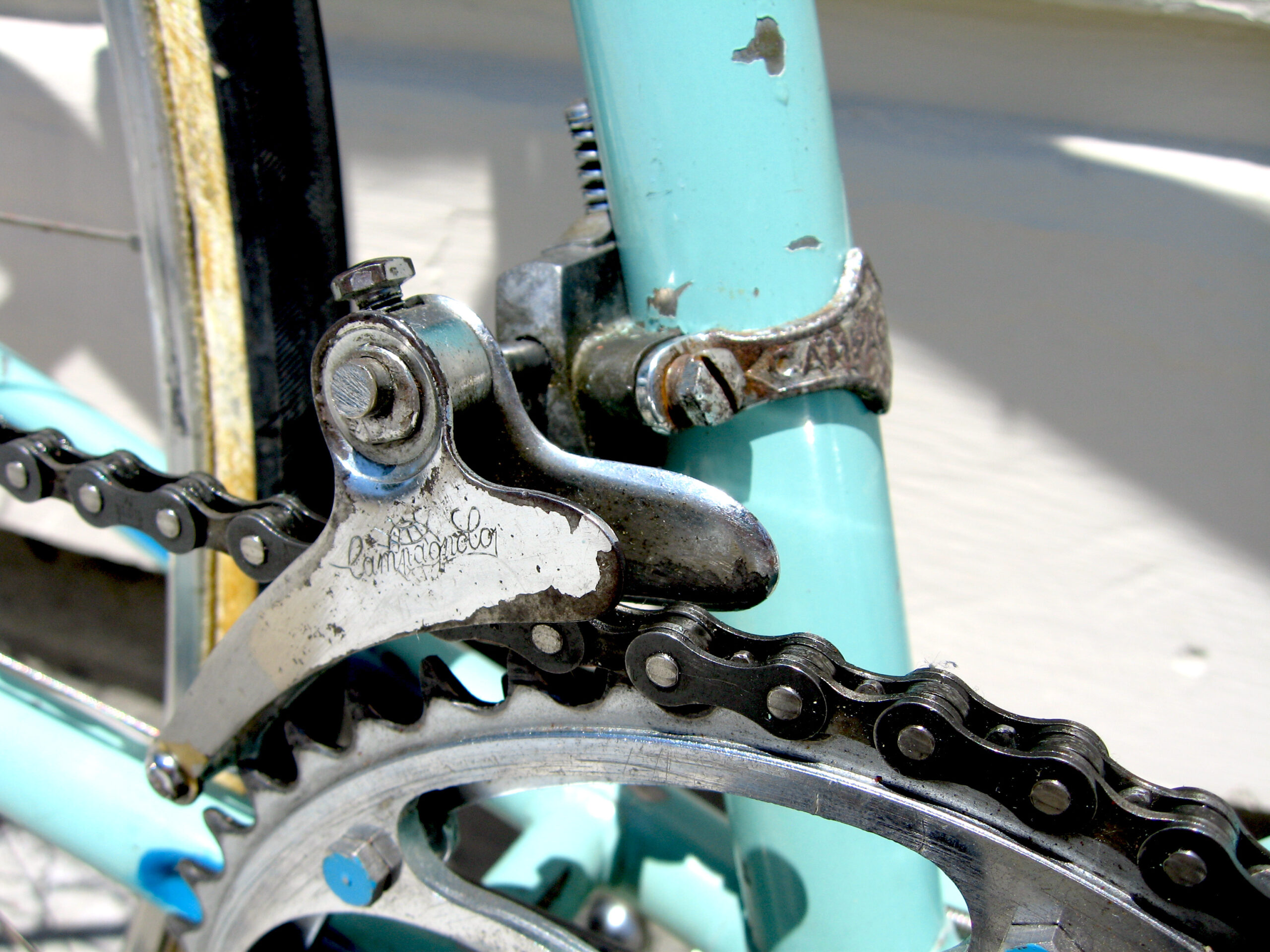

Rear Derailleur:Campagnolo Gran Sport, 5 speed, steel
Chain:Sedis, steel

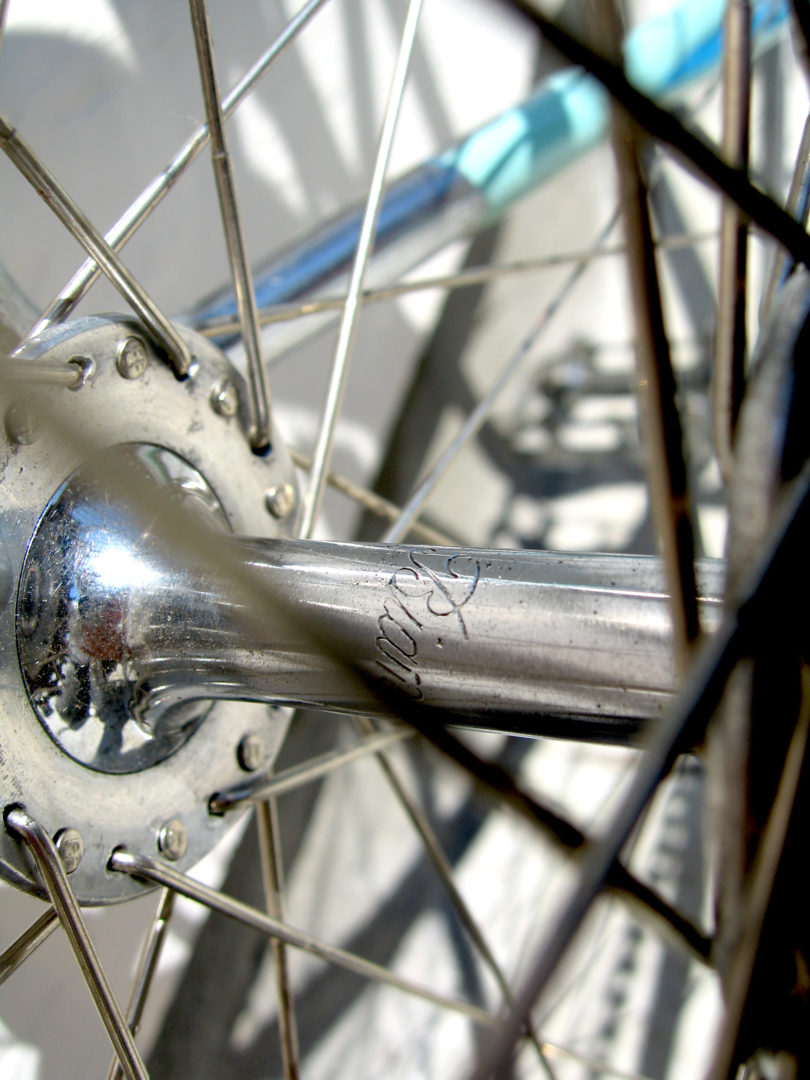

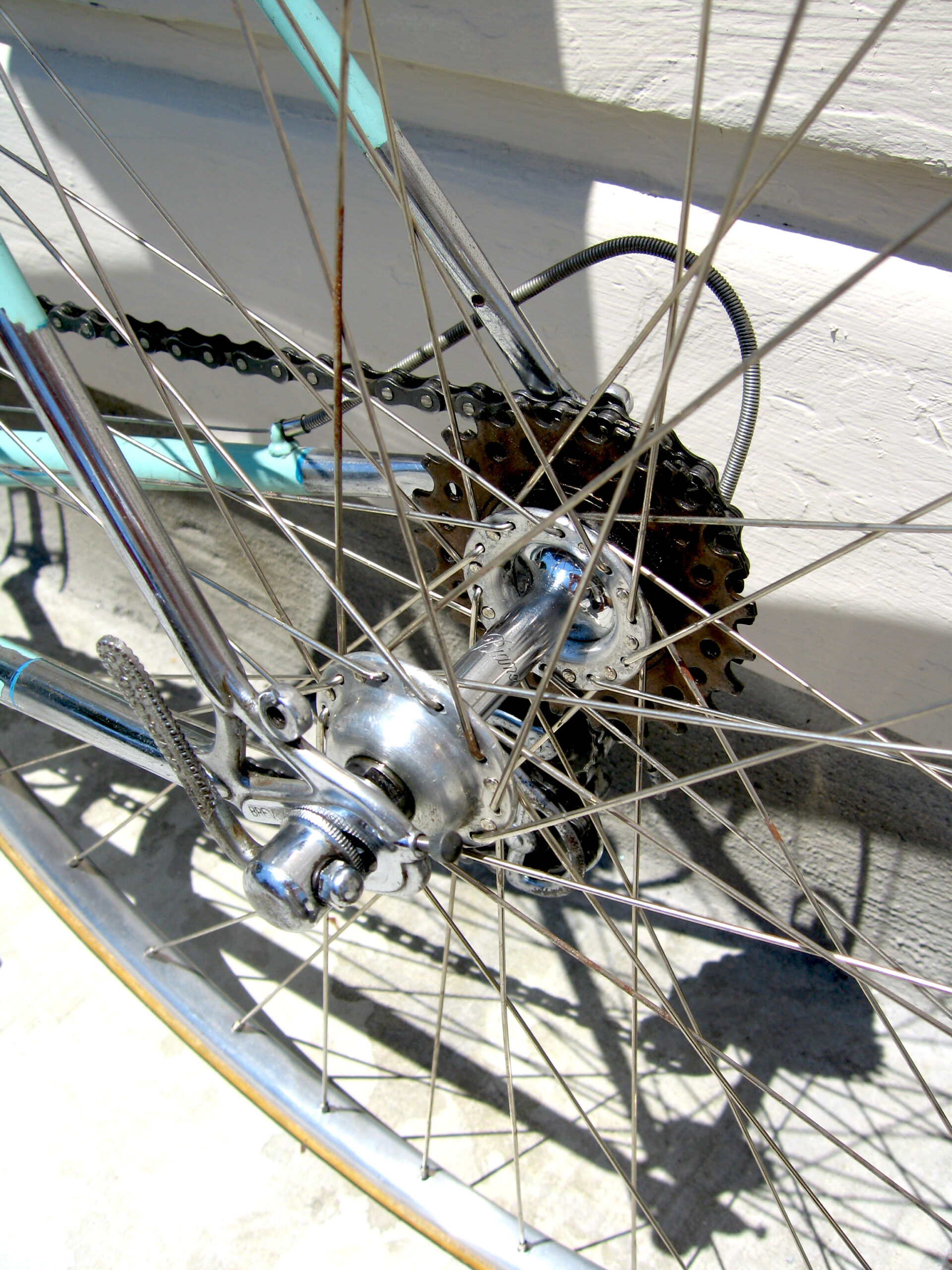

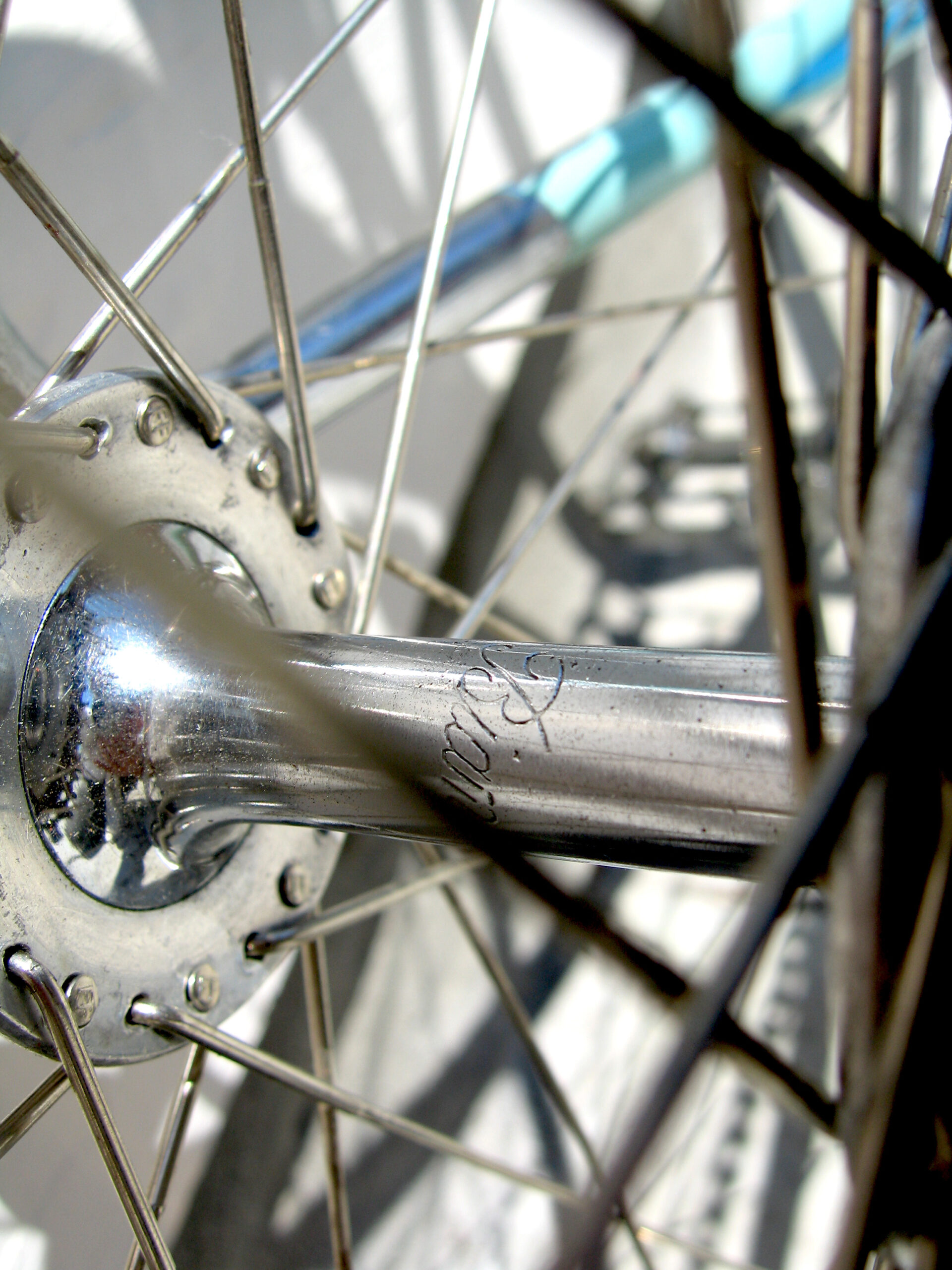

Hubs:Campagnolo for Bianchi, Gran Sport three piece, low flange, 32F-40R hole, steel and aluminum
Rims:Fiamme, tubular, 700c, 32F-40R hole, aluminum
Tires:Swallow Montello front, Schwalbe Montello rear, 700c
Spokes:32F by 3X cross, 40R by 3X cross, steel

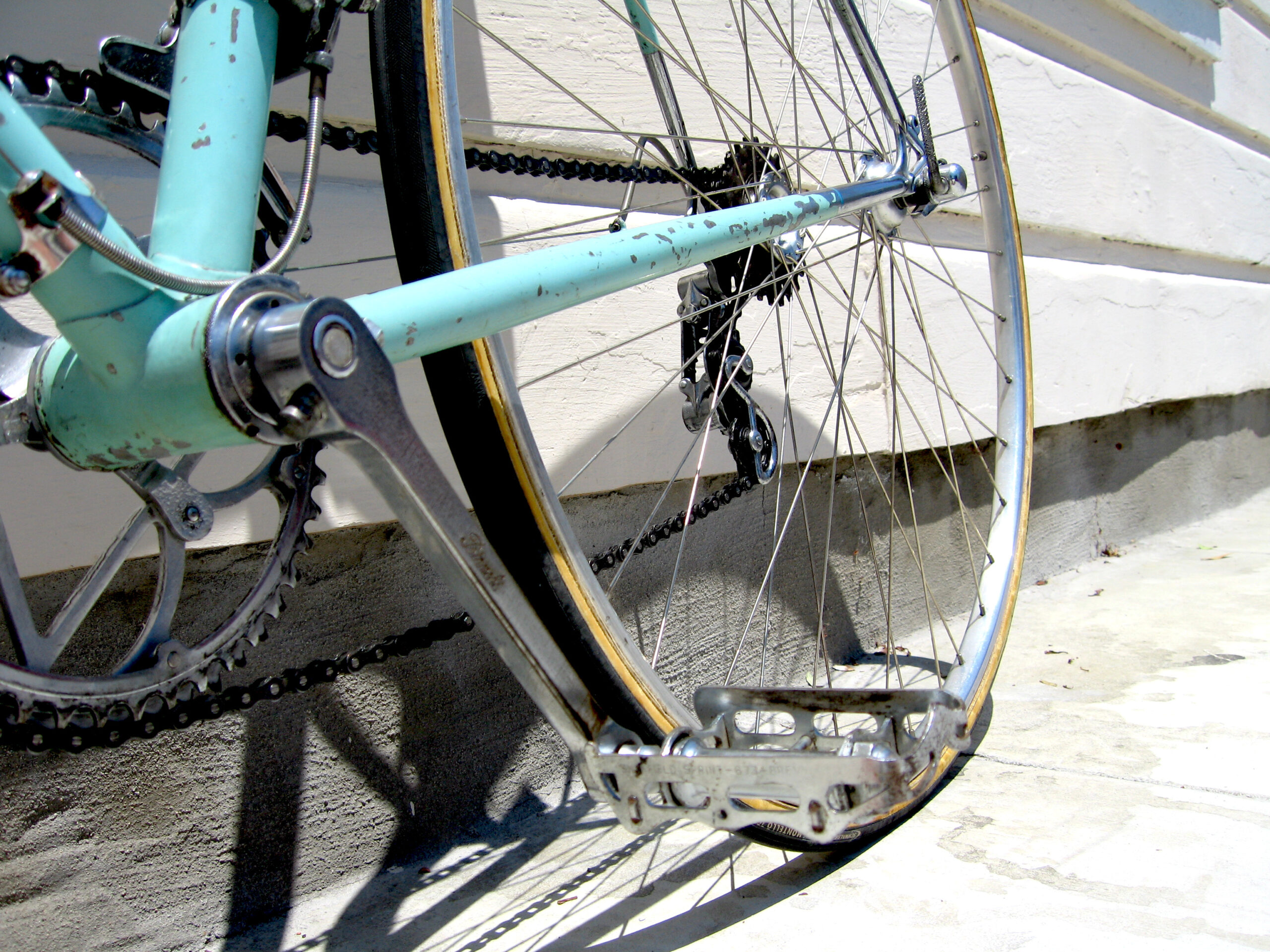

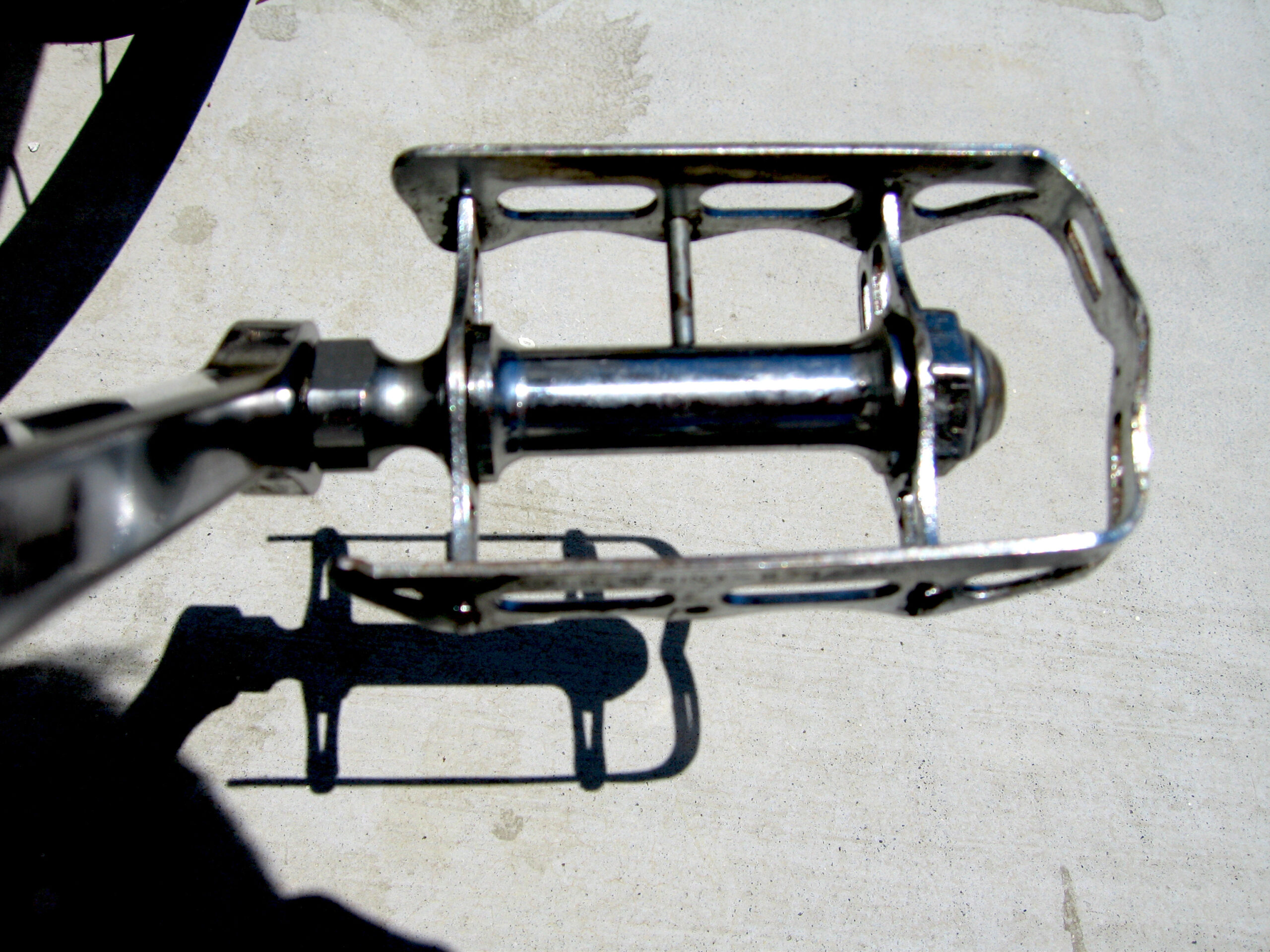

Pedals:Sheffiled Sprint 673, reinforced, aluminum

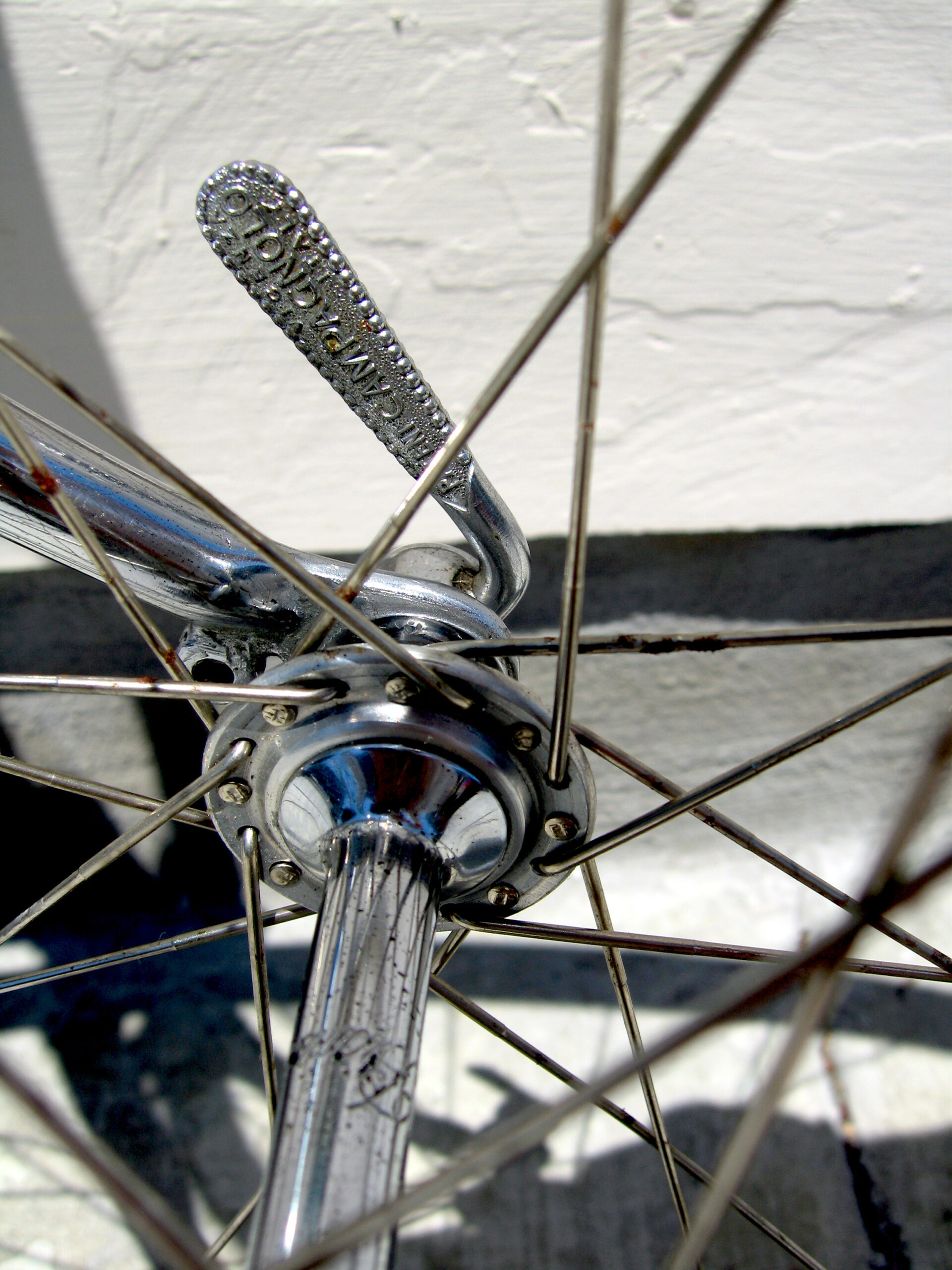

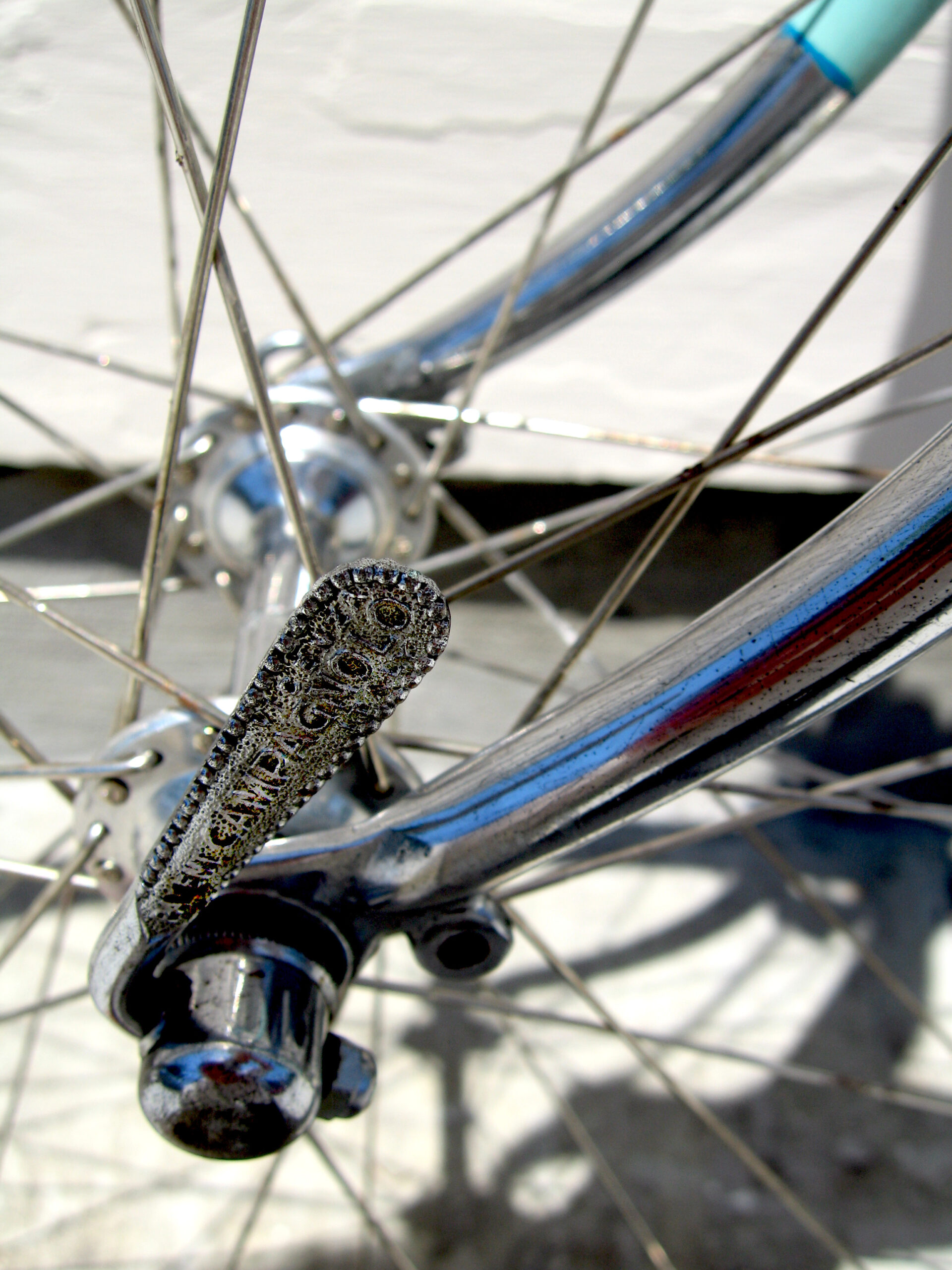

Extras:Campagnolo “Open C” skewers, steel; REG cable guides, steel; Mil Remo bar plugs, plastic; bar wrap, cotton; ribbed cable housing, plastic and steel

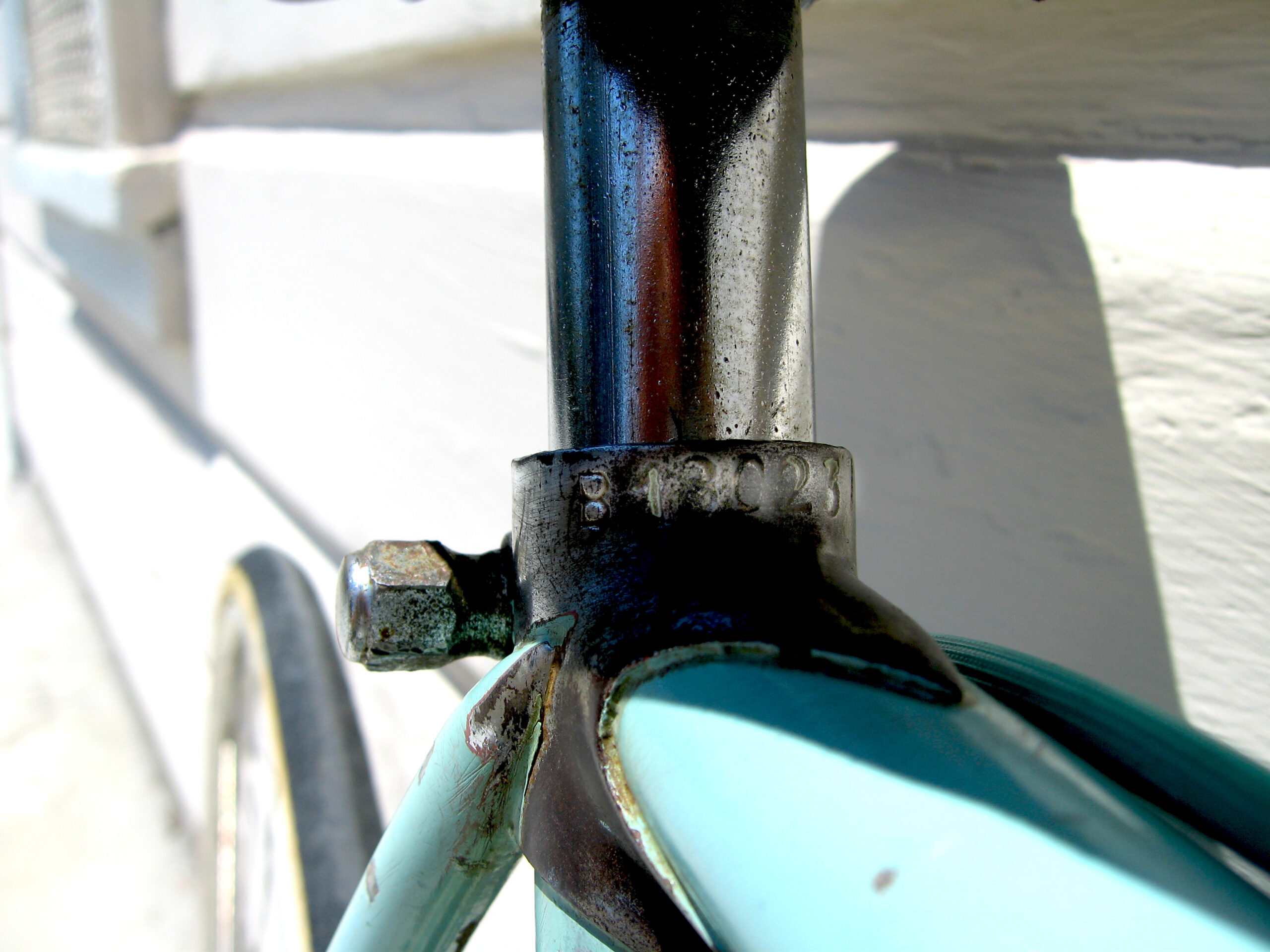

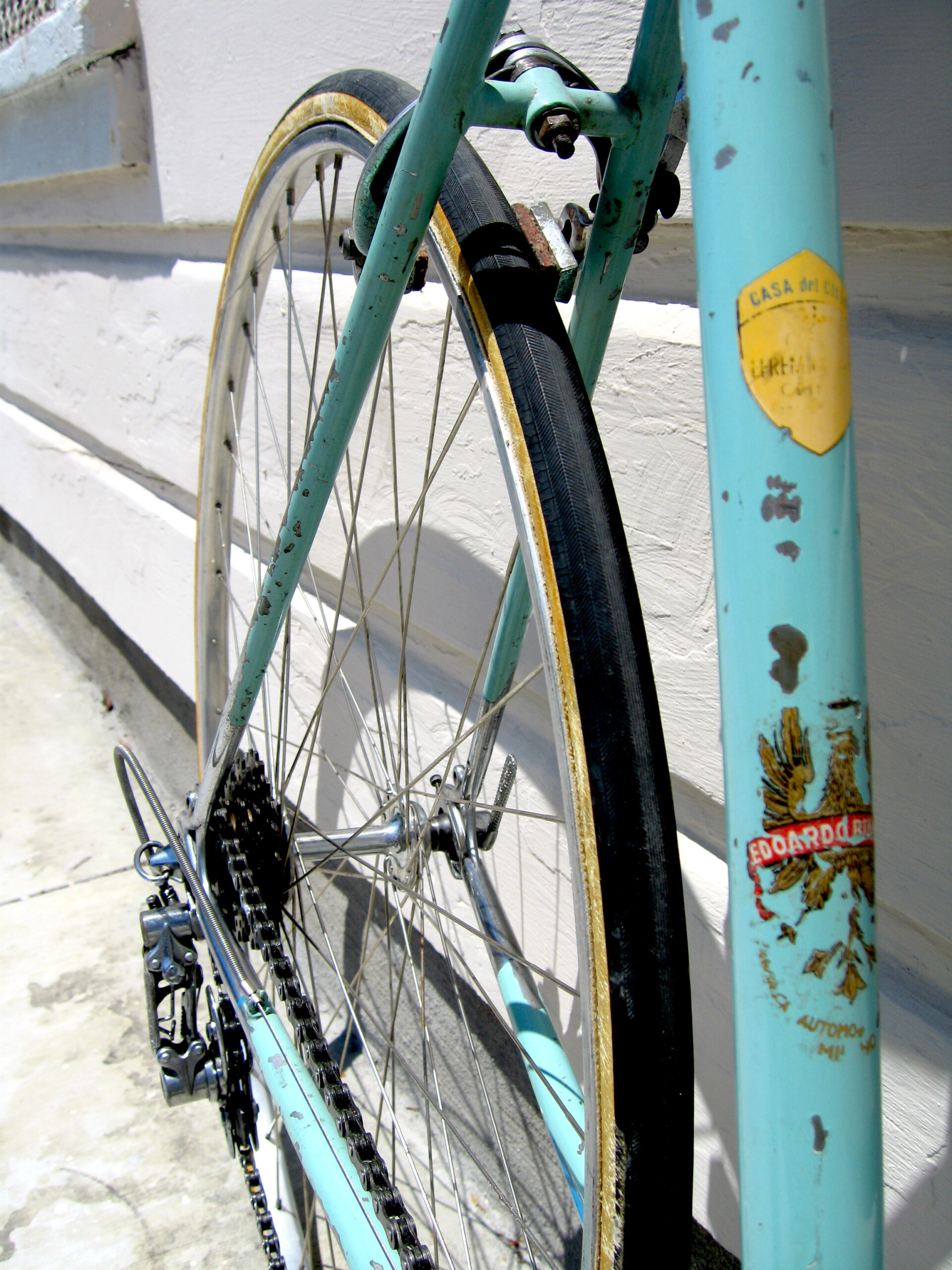

Notes:Celeste finish, blue accents, chrome head and seat lugs, chrome stay ends, chrome fork crown and ends, red transfer on downtube, Bianchi crest on seat tube, yellow “Casa del Ciclo” shop transfer on seat tube, “B180237” seat lug stamp, original except tires/hoods/chain, respray in 1960’s, fair condition, paint chipping, chrome peppering
Size:55cm top tube center-center, 53cm seat tube center-center
Weight:10kg
